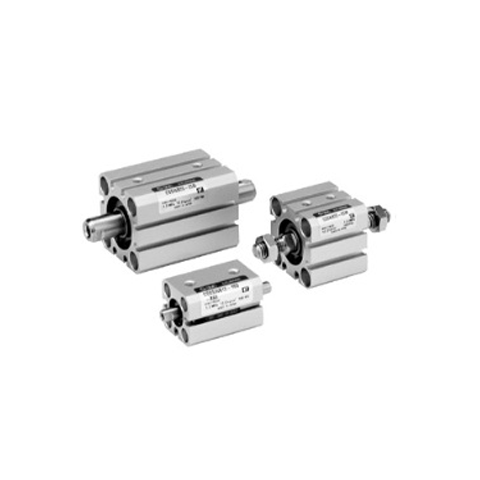

Name: SMC CQSW Series, Compact Type Cylinder, non rot, Double Acting, Double Rod, CDQSWB20-35D
Brand: SMC
SKU: CDQSWB20-35D
Price: 40.04 USD
Availability: InStock

SMC CQSW Series, Compact Type Cylinder, non rot, Double Acting, Double Rod, CDQSWB20-35D

VendorSMC

Description

OVERVIEW

Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides
Compact cylinder that does not protrude from the main body when auto switch is attached.
With auto switch (CDQS series: CDQS, CDQSW, CDQSK, CDQSKW, CDQS S)

Specification item	model symbol	Specification information
built-in magnet	D	built-in magnet
installation support	B	Through-hole/double-end tap common (standard)
tube inner diameter	20	tube inner diameter 20mm
cylinder stroke	35	cylinder stroke 35mm
option	-	standard
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDQSWB20-35D

Magnet	Built-in magnet
Bore	20mm
Stroke	35mm
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting
Port thread	M
Rod end female thread	M5X0.8
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Lubrication	Non-lube
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Piston speed min	50 mm/s
Weight	214 g

Specification values above are for model code CDQSWB20-35D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
