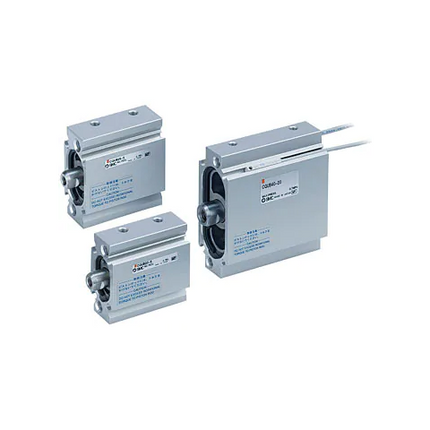

SMC CQUB20-15M — CQU Series Compact Plate Cylinder, Double Acting, Single Rod. This code specifies 20mm bore, 15mm stroke, double acting, single rod.
Specification — CQUB20-15M
| Stroke |
15mm |
| Port size |
M5X0.8 |
| Fluid |
Air |
| Action |
Double acting, single rod |
| Cushion |
Rubber bumper |
| Port thread |
M |
| Rod end male thread |
M8X1.25 |
| Min. operating pressure |
0.08 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.0 MPa |
| Lubrication |
Non-lube |
| Fluid temp. min |
-10 °C |
| Fluid temp. max |
60 °C |
| Ambient temp. min |
-10 °C |
| Ambient temp. max |
60 °C |
| Piston speed min |
50 mm/s |
| Weight |
148 g |
Specification values above are for model code CQUB20-15M as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CQU series
- Reduction in width by up to 40% as the piston is oval (compared to CQ2 series)
- Up to 36% reduced in weight (compared to MU series)
- Auto switches can be attached from 4 directions
- There is no protruding auto switch
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
