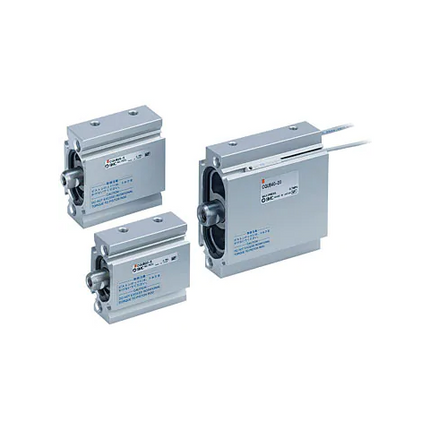

SMC CQU Series Compact Plate Cylinder, Double Acting, Single Rod, CQUB20-20M

Description

OVERVIEW


  • Reduction in width by up to 40% as the piston is oval (compared to CQ2 series)
  • Up to 36% reduced in weight (compared to MU series)
  • Auto switches can be attached from 4 directions
  • There is no protruding auto switch



Specification item model symbol Specification information
installation B Through-hole/double-end tap common (standard)
size 20 Piston area equivalent to ø25
cylinder stroke 20 cylinder stroke 20mm
rod end screw M rod end male thread
auto switch - Without auto switch Built-in magnet Without rod with switch
Auto switch additional symbol - 2 with or without

Product form

OVERVIEW Reduction in width by up to 40% as the piston is oval (compared to CQ2 series) Up to 36%... Read more

SKU: CQUB20-20M

$52.14 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Sep 29, 2024 17:00:00 +0900

    Description

    OVERVIEW


    • Reduction in width by up to 40% as the piston is oval (compared to CQ2 series)
    • Up to 36% reduced in weight (compared to MU series)
    • Auto switches can be attached from 4 directions
    • There is no protruding auto switch



    Specification item model symbol Specification information
    installation B Through-hole/double-end tap common (standard)
    size 20 Piston area equivalent to ø25
    cylinder stroke 20 cylinder stroke 20mm
    rod end screw M rod end male thread
    auto switch - Without auto switch Built-in magnet Without rod with switch
    Auto switch additional symbol - 2 with or without
