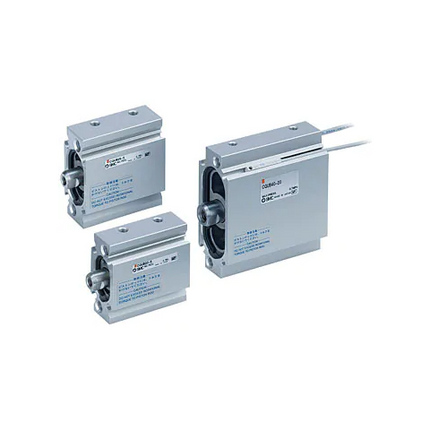

Name: SMC CQU Series Compact Plate Cylinder, Double Acting, Single Rod, CQUB32-30
Brand: SMC
SKU: CQUB32-30
Price: 45.96 USD
Availability: InStock

SMC CQU Series Compact Plate Cylinder, Double Acting, Single Rod, CQUB32-30

VendorSMC

Description

OVERVIEW

Reduction in width by up to 40% as the piston is oval (compared to CQ2 series)
Up to 36% reduced in weight (compared to MU series)
Auto switches can be attached from 4 directions
There is no protruding auto switch

Specification item	model symbol	Specification information
installation	B	Through-hole/double-end tap common (standard)
size	32	Piston area equivalent to ø40
cylinder stroke	30	cylinder stroke 30mm
rod end screw	-	Rod end female thread
auto switch	-	Without auto switch Built-in magnet Without rod with switch
Auto switch additional symbol	-	2 with or without

Specification — CQUB32-30

Stroke	30mm
Port size	M5X0.8
Fluid	Air
Action	Double acting, single rod
Cushion	Rubber bumper
Port thread	M
Min. operating pressure	0.05 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.0 MPa
Lubrication	Non-lube
Rod end female thread	M8X1.25
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Piston speed min	50 mm/s
Weight	272 g

Specification values above are for model code CQUB32-30 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
