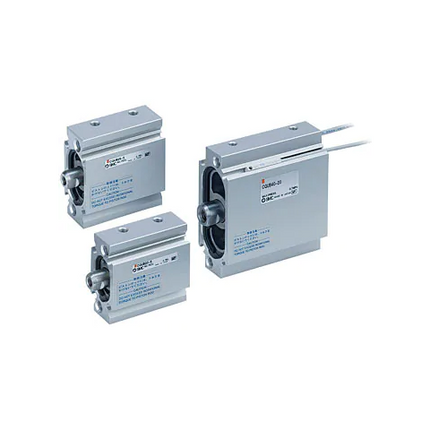

Name: SMC CQU Series Compact Plate Cylinder, Double Acting, Single Rod, CQUB40-5
Brand: SMC
SKU: CQUB40-5
Price: 53.38 USD
Availability: InStock

SMC CQU Series Compact Plate Cylinder, Double Acting, Single Rod, CQUB40-5

VendorSMC

Description

OVERVIEW

Reduction in width by up to 40% as the piston is oval (compared to CQ2 series)
Up to 36% reduced in weight (compared to MU series)
Auto switches can be attached from 4 directions
There is no protruding auto switch

Specification item	model symbol	Specification information
installation	B	Through-hole/double-end tap common (standard)
size	40	Piston area equivalent to ø50
cylinder stroke	5	cylinder stroke 5mm
rod end screw	-	Rod end female thread
auto switch	-	Without auto switch Built-in magnet Without rod with switch
Auto switch additional symbol	-	2 with or without

Specification — CQUB40-5

Stroke	5mm
Port size	M5X0.8
Fluid	Air
Action	Double acting, single rod
Cushion	Rubber bumper
Port thread	M
Min. operating pressure	0.05 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.0 MPa
Lubrication	Non-lube
Rod end female thread	M8X1.25
Ambient temp. min	-10 °C
Ambient temp. max	60 °C
Piston speed min	50 mm/s
Piston speed max	500 mm/s
Rod diameter	14 mm
Weight	264 g

Specification values above are for model code CQUB40-5 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
