Description

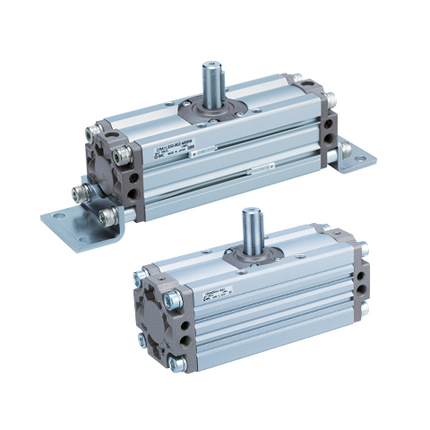

SMC CDRA1BS80-90CZ — CRA1 Series Rotary Actuator Rack and Pinion Type. This code specifies 90° rotation, without auto switch.
Specification — CDRA1BS80-90CZ
| Mounting |
Basic |
| Cushion |
Air cushion |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
1.0 MPa |
| Lubrication |
Non-lube |
| Allowable kinetic energy |
2.00 J |
| Weight |
3,900 g |
Specification values above are for model code CDRA1BS80-90CZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC CRA1 series
- Can be mounted on 2 sides of a small auto switch ( D -M9??span> type ) Can be mounted from the front of the auto switch UZ, CDVRA1)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
