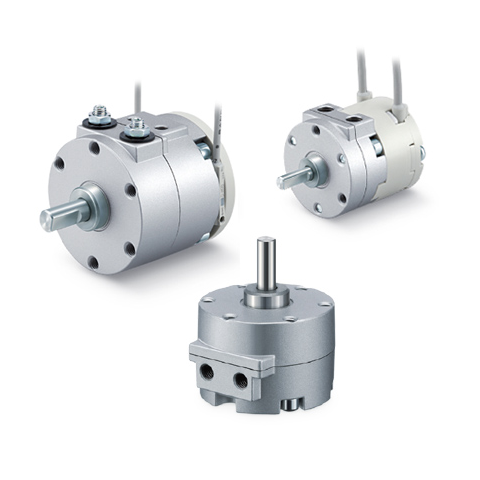

SMC CRB Series Rotary Actuator Vane Type, CDRBS20-180-M9BL

Description

OVERVIEW



  • A 270° rotating angle specification has been added. (Size: 10 15 40) [New]
  • Features a compact body with a built-in angle adjustment unit and auto switch unit (Size: 20, 30, 40) Overall length: 44% shorter, Weight: 48% lighter
  • Piping, wiring, and angle adjustment can be performed on the same side for easier mounting
  • Easy-to-adjust start and end positions with the angle adjustment bolts (as standard)
  • The position of the chamfered portion of the shaft can be easily checked using the rotating angle indicator. (Only for the CDRB with auto switch)
  • Each of the units below for the CRB2 series can be mounted to the CRB series



Configuration Options



1 With auto switch D Built-in auto switch magnet
2 Shaft type S Single shaft??
W Double shaft
J?? Double shaft
K?? Double shaft
T?? Single shaft??
Y?? Double shaft
3 Size 10,15,20,30,40
4 Rotating angle 90,180,270
5 Lead wire length Nil Grommet/Lead wire: 0.5 m
M Grommet/Lead wire: 1 m
L Grommet/Lead wire: 3 m
Z?? Grommet/Lead wire: 5 m
6 Number of auto switches Nil 2
S 1
Product form

OVERVIEW A 270° rotating angle specification has been added. (Size: 10 15 40) [New] Features a compact body with a built-in... Read more

SKU: CDRBS20-180-M9BL

$188.64 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW



    • A 270° rotating angle specification has been added. (Size: 10 15 40) [New]
    • Features a compact body with a built-in angle adjustment unit and auto switch unit (Size: 20, 30, 40) Overall length: 44% shorter, Weight: 48% lighter
    • Piping, wiring, and angle adjustment can be performed on the same side for easier mounting
    • Easy-to-adjust start and end positions with the angle adjustment bolts (as standard)
    • The position of the chamfered portion of the shaft can be easily checked using the rotating angle indicator. (Only for the CDRB with auto switch)
    • Each of the units below for the CRB2 series can be mounted to the CRB series



    Configuration Options



    1 With auto switch D Built-in auto switch magnet
    2 Shaft type S Single shaft??
    W Double shaft
    J?? Double shaft
    K?? Double shaft
    T?? Single shaft??
    Y?? Double shaft
    3 Size 10,15,20,30,40
    4 Rotating angle 90,180,270
    5 Lead wire length Nil Grommet/Lead wire: 0.5 m
    M Grommet/Lead wire: 1 m
    L Grommet/Lead wire: 3 m
    Z?? Grommet/Lead wire: 5 m
    6 Number of auto switches Nil 2
    S 1
