Description

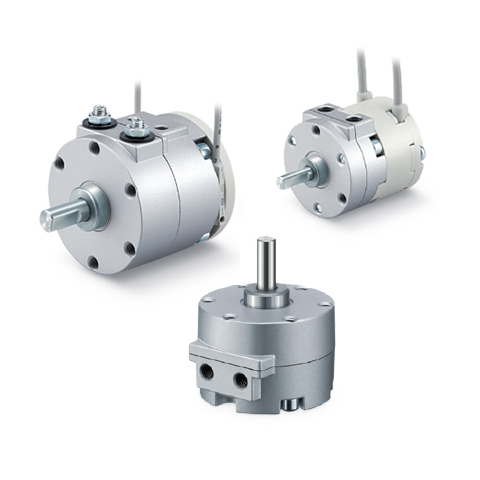

SMC CRBW30-90 — CRB Series Rotary Actuator Vane Type. This code specifies 90° rotation, without auto switch.
Specification — CRBW30-90
| Auto switch |
Without auto switch |
| Port thread |
M |
| Min. operating pressure |
0.2 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Lubrication |
Non-lube |
| Allowable kinetic energy |
0.02 J |
| Weight |
203 g |
Specification values above are for model code CRBW30-90 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC CRB series
- A 270° rotating angle specification has been added. (Size: 10 15 40) [New]
- Features a compact body with a built-in angle adjustment unit and auto switch unit (Size: 20, 30, 40) Overall length: 44% shorter, Weight: 48% lighter
- Piping, wiring, and angle adjustment can be performed on the same side for easier mounting
- Easy-to-adjust start and end positions with the angle adjustment bolts (as standard)
- The position of the chamfered portion of the shaft can be easily checked using the rotating angle indicator. (Only for the CDRB with auto switch)
- Each of the units below for the CRB2 series can be mounted to the CRB series
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
