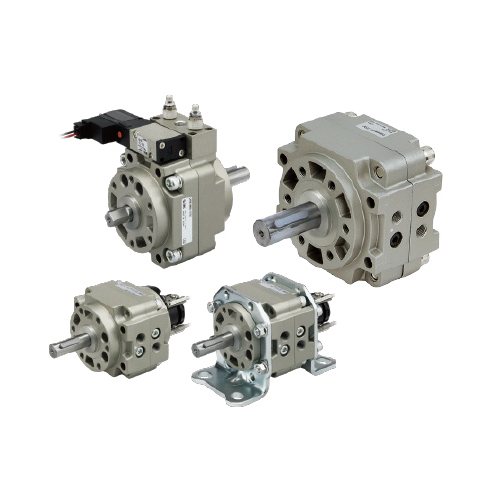

Description
| 1 |
With auto switch |
|
(With auto switch unit and built-in magnet) * Refer to page 99 when the auto switch unit is needed separately |
| 2 |
Mounting |
B |
Basic type |
| L |
Foot Type |
| 3 |
Shaft type |
W |
Double Shaft |
|
| 4 |
With angle adjuster unit |
|
Refer to page 99 when the angle adjuster unit is needed separately. |
| 5 |
Size |
|
50,63,80,100 |
| 6 |
Rotating Angle |
Standard |
90,180,270 |
| Semi-Standard |
90,100 |
| 7 |
Vane Type |
S |
Single vane |
| D |
Double vane |
| 8 |
Auto switch |
Nil |
Without auto switch (Built-in magnet) |
| M |
Without D-M9 type auto switch (Built-in magnet) |
| 9 |
Electrical entry/Lead wire length |
Nil |
Grommet/Lead wire: 0.5 m |
| M |
Grommet/Lead wire: 1 m |
| L |
Grommet/Lead wire: 3 m |
| CN |
Connector/Without lead wire |
| C |
Connector/Lead wire: 0.5 m |
| CL |
Connector/Lead wire: 3 m |
| 10 |
Number of auto switches |
S |
1 pc.* |
| Nil |
2 pcs.** |
| 11 |
Made to Order |
|
|
Specification — CDRB1BW63-180S-R73C
| Mounting |
Basic |
| Port thread |
Rc |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Lubrication |
Non-lube |
| Allowable kinetic energy |
0.12 J |
| Weight |
1,000 g |
Specification values above are for model code CDRB1BW63-180S-R73C as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
