Description
SMC CDRB1BW63-90D-M9BL — CRB1 Series Rotary Actuator Vane Type. This code specifies 90° rotation.
Specification — CDRB1BW63-90D-M9BL
| Mounting |
Basic |
| Port thread |
Rc |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Lubrication |
Non-lube |
| Allowable kinetic energy |
0.16 J |
| Weight |
1,495 g |
Specification values above are for model code CDRB1BW63-90D-M9BL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order

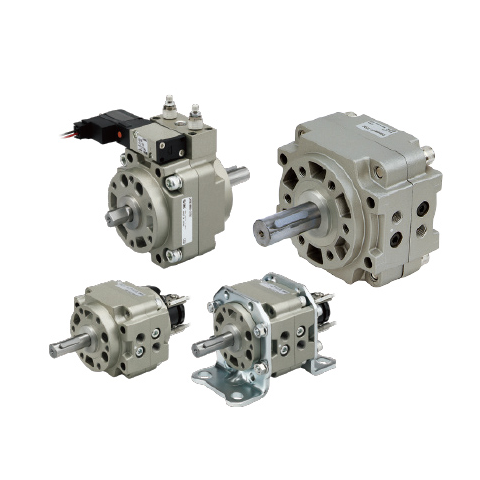

About the SMC CRB1 series
- Auto switch mounting position can be moved anywhere
- Direct installation possible
- Connection port location: body side, axial direction selectable
- Low pressure operation: 0.15MPa (size 50 to 100)
- Auto switch attached (CDRB1 series: CDRB1, CDVRB1)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
