Description

OVERVIEW

Auto switch mounting position can be moved anywhere
Direct installation possible
Connection port location: body side, axial direction selectable
Low pressure operation: 0.15MPa (size 50 to 100)
Auto switch attached (CDRB1 series: CDRB1, CDVRB1)

Specification item	model symbol	Specification information
With auto switch	-	without auto switch
installation support	L	foot type
shaft type	Y	double axis key
size	63	63
option 1	-	standard type
rocking angle	180	180°
vane type	S	single vane
connection port location	-	body side
option 2	-	standard type
auto switch	-	without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	Standard/Rc

Product form

OVERVIEW Auto switch mounting position can be moved anywhere Direct installation possible Connection port location: body side, axial direction selectable... Read more

SKU: CRB1LY63-180S

$290.58 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Auto switch mounting position can be moved anywhere
Direct installation possible
Connection port location: body side, axial direction selectable
Low pressure operation: 0.15MPa (size 50 to 100)
Auto switch attached (CDRB1 series: CDRB1, CDVRB1)

Specification item	model symbol	Specification information
With auto switch	-	without auto switch
installation support	L	foot type
shaft type	Y	double axis key
size	63	63
option 1	-	standard type
rocking angle	180	180°
vane type	S	single vane
connection port location	-	body side
option 2	-	standard type
auto switch	-	without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	Standard/Rc

Reviews

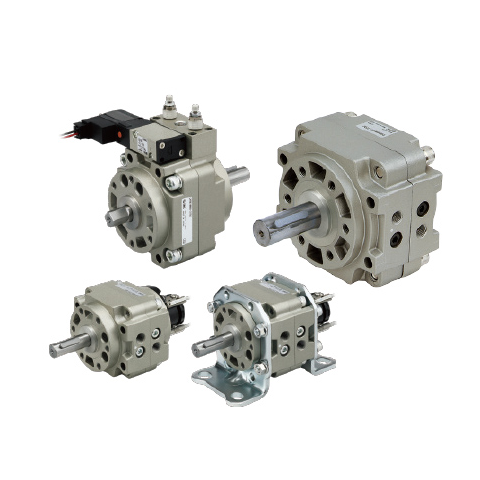

Name: SMC CRB1 Series Rotary Actuator, Vane Type, CRB1LY63-180S
