Description

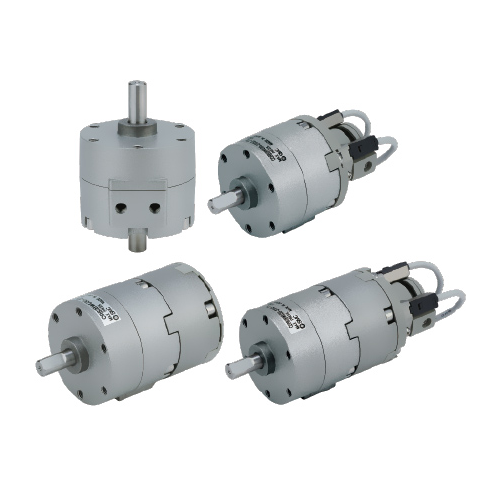

SMC CDRB2BW30-180SZ-M9NL — CRB2 Series Rotary Actuator Vane Type. This code specifies 180° rotation.
Specification — CDRB2BW30-180SZ-M9NL
| Mounting |
Basic |
| Port thread |
M |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Lubrication |
Non-lube |
| Allowable kinetic energy |
0.02 J |
| Weight |
303 g |
Specification values above are for model code CDRB2BW30-180SZ-M9NL as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC CRB2 series
- Auto switch mounting position can be moved anywhere
- Direct installation possible
- Connection port location: body side, axial direction selectable(body side only when switch and angle adjuster are attached)
- Low pressure operation: 0.2MPa (size 10) 0.15MPa (Size 15 to 40)
- Can be adjusted to any angle with angle adjuster
- With auto switch (CDRB2 series: CDRB2W, CDRB2WU)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
