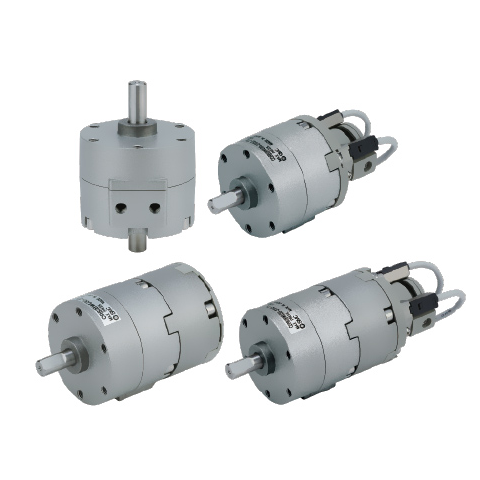

SMC CRB2 Series Rotary Actuator Vane Type,CDRBU2W30-90SZ-R73CL

VendorSMC

Product form

OVERVIEW Auto switch mounting position can be moved anywhere Direct installation possible Connection port location: body side, axial direction selectable(body... Read more

SKU: CDRBU2W30-90SZ-R73CL

$140.45 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Reviews

Name: SMC CRB2 Series Rotary Actuator Vane Type,CDRBU2W30-90SZ-R73CL
Brand: SMC
SKU: CDRBU2W30-90SZ-R73CL
Price: 140.45 USD
Availability: InStock

SMC CRB2 Series Rotary Actuator Vane Type,CDRBU2W30-90SZ-R73CL

0 out of 5 stars

This product has no reviews yet

Write a review

1	With auto switch		(With auto switch unit and built-in magnet) * Refer to page 99 when the auto switch unit is needed separately
2	Mounting	B	Basic type
2	Mounting	F	Flange type
3	Shaft type	W	Single flat*
3	Shaft type	J**	Round shaf
4	With angle adjuster unit		Refer to page 99 when the angle adjuster unit is needed separately.
5	Size		10,15,20,30,40
6	Rotating Angle	Single vane	90,180,270
6		Double vane	90,100
7	Vane Type	S	Single vane
7	Vane Type	D	Double vane
8	Auto switch	Nil	Without auto switch (Built-in magnet)
8	Auto switch	M	Without M9 type auto switch (Built-in magnet)
9	Electrical entry/Lead wire length	Nil	Grommet/Lead wire: 0.5 m
		M	Grommet/Lead wire: 1 m
		L	Grommet/Lead wire: 3 m
		CN	Connector/Without lead wire
		C	Connector/Lead wire: 0.5 m
		CL	Connector/Lead wire: 3 m
10	Number of auto switches	S	1 pc.*
10	Number of auto switches	Nil	2 pcs.**
11	Made to Order
