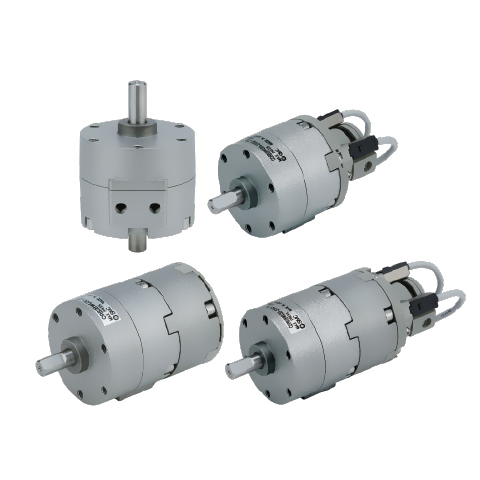

SMC CRB2 Series Rotary Actuator Vane Type,CRB2BW30-90SZ

Description

OVERVIEW



  • Auto switch mounting position can be moved anywhere
  • Direct installation possible
  • Connection port location: body side, axial direction selectable
    (body side only when switch and angle adjuster are attached)
  • Low pressure operation: 0.2MPa (size 10) 0.15MPa (Size 15 to 40)
  • Can be adjusted to any angle with angle adjuster
  • With auto switch (CDRB2 series: CDRB2?¬W, CDRB2?¬WU)








Specification — CRB2BW30-90SZ

Mounting Basic
Auto switch Without auto switch
Port thread M
Min. operating pressure 0.15 MPa
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Lubrication Non-lube
Allowable kinetic energy 0.02 J
Weight 199 g

Specification values above are for model code CRB2BW30-90SZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW Auto switch mounting position can be moved anywhere Direct installation possible Connection port location: body side, axial direction selectable(body... Read more

SKU: CRB2BW30-90SZ

$81.65 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW



    • Auto switch mounting position can be moved anywhere
    • Direct installation possible
    • Connection port location: body side, axial direction selectable
      (body side only when switch and angle adjuster are attached)
    • Low pressure operation: 0.2MPa (size 10) 0.15MPa (Size 15 to 40)
    • Can be adjusted to any angle with angle adjuster
    • With auto switch (CDRB2 series: CDRB2?¬W, CDRB2?¬WU)








    Specification — CRB2BW30-90SZ

    Mounting Basic
    Auto switch Without auto switch
    Port thread M
    Min. operating pressure 0.15 MPa
    Max. operating pressure 1.0 MPa
    Proof pressure 1.5 MPa
    Lubrication Non-lube
    Allowable kinetic energy 0.02 J
    Weight 199 g

    Specification values above are for model code CRB2BW30-90SZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
