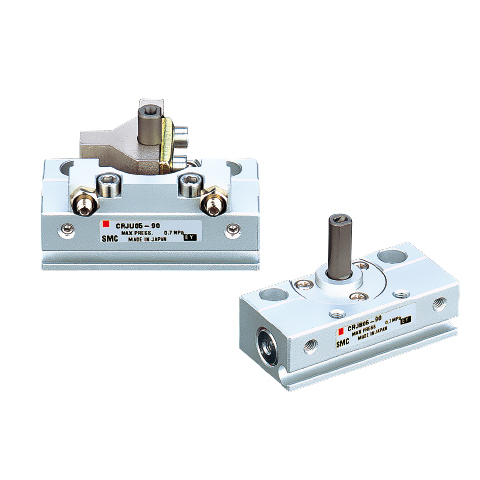

SMC CRJ Series Mini Rotary Actuator, CRJB1-190

Description

OVERVIEW



  • Compact and lightweight
  • Excellent installation capability Top, bottom, and side installation possible
  • Front port and side port selection available








Specification — CRJB1-190

Fluid Air
Port thread M
Min. operating pressure 0.15 MPa
Max. operating pressure 0.7 MPa
Lubrication Non-lube
Allowable kinetic energy 0.0004 J
Bore Φ8 mm
Weight 67 g

Specification values above are for model code CRJB1-190 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW Compact and lightweight Excellent installation capability Top, bottom, and side installation possible Front port and side port selection available... Read more

SKU: CRJB1-190

$80.78 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW



    • Compact and lightweight
    • Excellent installation capability Top, bottom, and side installation possible
    • Front port and side port selection available








    Specification — CRJB1-190

    Fluid Air
    Port thread M
    Min. operating pressure 0.15 MPa
    Max. operating pressure 0.7 MPa
    Lubrication Non-lube
    Allowable kinetic energy 0.0004 J
    Bore Φ8 mm
    Weight 67 g

    Specification values above are for model code CRJB1-190 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
