Description
SMC CRJB1-90 — CRJ Series Mini Rotary Actuator. This code specifies 8 mm bore, 90° rotation.
Specification — CRJB1-90
| Fluid |
Air |
| Port thread |
M |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
0.7 MPa |
| Lubrication |
Non-lube |
| Allowable kinetic energy |
0.0004 J |
| Bore |
Φ8 mm |
| Weight |
54 g |
Specification values above are for model code CRJB1-90 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order

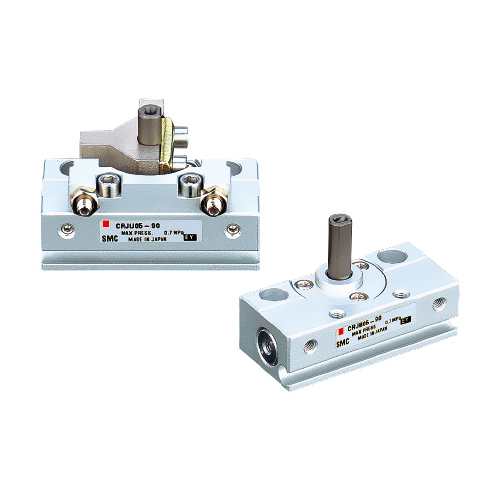

About the SMC CRJ series
- Compact and lightweight
- Excellent installation capability Top, bottom, and side installation possible
- Front port and side port selection available
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
