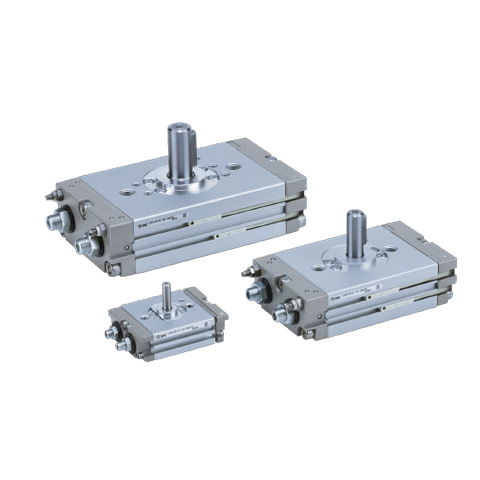

Name: SMC CRQ2 Series Compact Rotary Actuator, Rack and Pinion Type, CDRQ2BS15-90-A96
Brand: SMC
SKU: CDRQ2BS15-90-A96
Price: 220.39 USD
Availability: InStock

SMC CRQ2 Series Compact Rotary Actuator, Rack and Pinion Type, CDRQ2BS15-90-A96

VendorSMC

Description

OVERVIEW

With cushion
With angle adjusting mechanism
Selectable between single shaft and double shaft
With auto switch (CDRQ2 series: CDRQ2)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
shaft type	S	single axis
patterning	-	standard product
size	15	15
port type	-	Rc1/8;M5
rocking angle	90	80°~100°
cushion	-	No cushion, rubber cushion
Shaft/parallel key material	-	standard type
auto switch	A96	Reed auto switch, grommet, with light, 3-wire type (NPN), side entry, lead wire 0.5 m, applied voltage: DC4 to 8V
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — CDRQ2BS15-90-A96

Weight

236 g

Specification values above are for model code CDRQ2BS15-90-A96 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW With cushion With angle adjusting mechanism Selectable between single shaft and double shaft With auto switch (CDRQ2 series: CDRQ2)... Read more
