Description

OVERVIEW

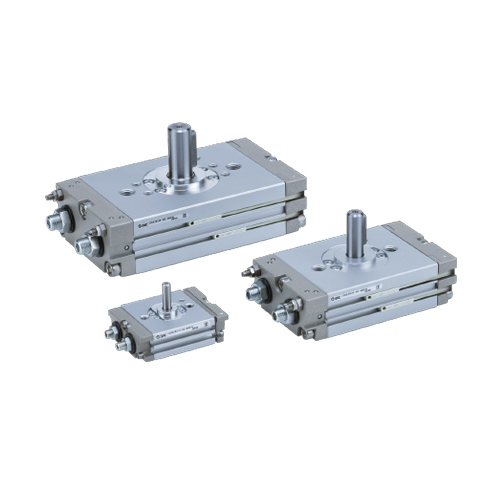

The CRQ2 series is a compact rotary, rack and pinion style actuator. Single and double shaft types are available in all sizes (10~40mm). The CRQ2 uses internal cushioning and the body can be used as a flange. The use of a double piston eliminates backlash. Auto switches are available.

With cushion
With angle adjusting mechanism
Selectable between single shaft and double shaft
With auto switch (CDRQ2 series: CDRQ2)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
shaft type	S	single axis
patterning	-	standard product
size	30	30
port type	-	Rc1/8;M5
rocking angle	90	80°~100°
cushion	-	No cushion, rubber cushion
Shaft/parallel key material	-	standard type
auto switch	M9BAL	Water resistance 2-color display, solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 3 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW The CRQ2 series is a compact rotary, rack and pinion style actuator. Single and double shaft types are available... Read more

SKU: CDRQ2BS30-90-M9BAL

$377.86 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

The CRQ2 series is a compact rotary, rack and pinion style actuator. Single and double shaft types are available in all sizes (10~40mm). The CRQ2 uses internal cushioning and the body can be used as a flange. The use of a double piston eliminates backlash. Auto switches are available.

With cushion
With angle adjusting mechanism
Selectable between single shaft and double shaft
With auto switch (CDRQ2 series: CDRQ2)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
shaft type	S	single axis
patterning	-	standard product
size	30	30
port type	-	Rc1/8;M5
rocking angle	90	80°~100°
cushion	-	No cushion, rubber cushion
Shaft/parallel key material	-	standard type
auto switch	M9BAL	Water resistance 2-color display, solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 3 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

Name: SMC CRQ2 Series Compact Rotary Actuator, Rack and Pinion Type, CDRQ2BS30-90-M9BAL
Brand: SMC
SKU: CDRQ2BS30-90-M9BAL
Price: 377.86 USD
Availability: InStock

SMC CRQ2 Series Compact Rotary Actuator, Rack and Pinion Type, CDRQ2BS30-90-M9BAL
