Description

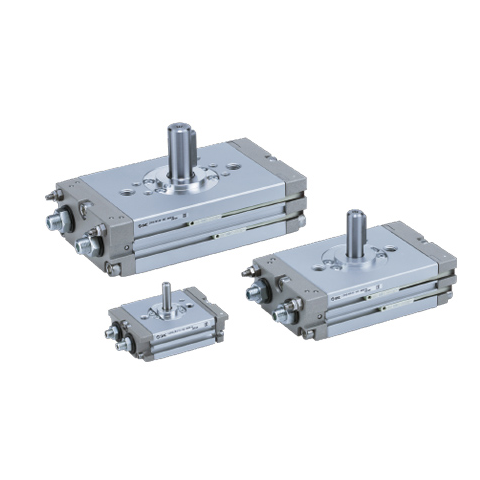

SMC CDRQ2BS30-90C-A93 — CRQ2 Series Compact Rotary Actuator, Rack and Pinion Type. This code specifies 90° rotation.
Specification — CDRQ2BS30-90C-A93
| Cushion |
Air cushion |
| Fluid |
Air |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
1.0 MPa |
| Lubrication |
Non-lube |
| Allowable kinetic energy |
0.25 J |
| Weight |
912 g |
Specification values above are for model code CDRQ2BS30-90C-A93 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order
About the SMC CRQ2 series
- With cushion
- With angle adjusting mechanism
- Selectable between single shaft and double shaft
- With auto switch (CDRQ2 series: CDRQ2)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
