Description
SMC CRQ2BS10-180 — CRQ2 Series Compact Rotary Actuator Rack and Pinion Type. This code specifies 180° rotation, without auto switch.
Specification — CRQ2BS10-180
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
0.7 MPa |
| Lubrication |
Non-lube |
| Allowable kinetic energy |
0.00025 J |
| Weight |
150 g |
Specification values above are for model code CRQ2BS10-180 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
How to order

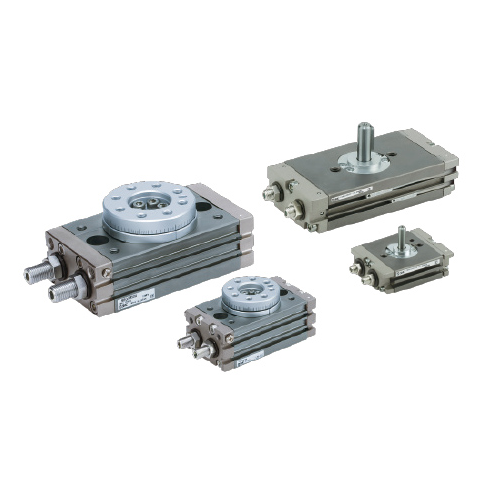

About the SMC CRQ2 series
- With cushion
- With angle adjusting mechanism
- Selectable between single shaft and double shaft
- With auto switch (CDRQ2 series: CDRQ2)
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
