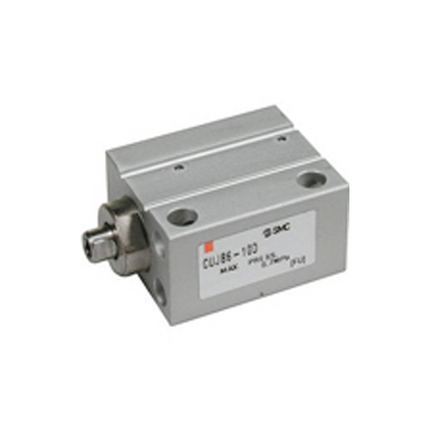

SMC CUJ Series, Mini Free Installation Cylinder, CDUJB10-15D-M9NWS

Description

OVERVIEW


  • Compared to CU, a space-saving
    　cylinder that reduces overall length by 64% and volume by 70%
  • With auto switch (CDUJ series: CDUJ)



Specification item model symbol Specification information
With auto switch D With auto switch
installation B Basic type (through hole type)
tube inner diameter 10 tube inner diameter 10mm
cylinder stroke 15 cylinder stroke 15mm
how it works D double acting
rod end screw - Rod end female thread (No thread for ø4)
auto switch M9NW 2-color display, solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 0.5 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol S 1 attached
Custom made specifications - standard

Specification — CDUJB10-15D-M9NWS

Bore 10mm
Stroke 15mm
Action Double acting
Port size M3X0.5
Fluid Air
Port thread M
Min. operating pressure 0.1 MPa
Max. operating pressure 0.7 MPa
Proof pressure 1.05 MPa
Lubrication Non-lube
Rod end female thread M3X0.5
Ambient temp. min -10 °C
Ambient temp. max 60 °C
Piston speed min 50 mm/s
Piston speed max 500 mm/s
Rod diameter 6 mm
Weight 37 g

Specification values above are for model code CDUJB10-15D-M9NWS as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW Compared to CU, a space-saving　cylinder that reduces overall length by 64% and volume by 70% With auto switch (CDUJ... Read more

SKU: CDUJB10-15D-M9NWS

$65.37 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    • Compared to CU, a space-saving
      　cylinder that reduces overall length by 64% and volume by 70%
    • With auto switch (CDUJ series: CDUJ)



    Specification item model symbol Specification information
    With auto switch D With auto switch
    installation B Basic type (through hole type)
    tube inner diameter 10 tube inner diameter 10mm
    cylinder stroke 15 cylinder stroke 15mm
    how it works D double acting
    rod end screw - Rod end female thread (No thread for ø4)
    auto switch M9NW 2-color display, solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 0.5 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
    Auto switch additional symbol S 1 attached
    Custom made specifications - standard

    Specification — CDUJB10-15D-M9NWS

    Bore 10mm
    Stroke 15mm
    Action Double acting
    Port size M3X0.5
    Fluid Air
    Port thread M
    Min. operating pressure 0.1 MPa
    Max. operating pressure 0.7 MPa
    Proof pressure 1.05 MPa
    Lubrication Non-lube
    Rod end female thread M3X0.5
    Ambient temp. min -10 °C
    Ambient temp. max 60 °C
    Piston speed min 50 mm/s
    Piston speed max 500 mm/s
    Rod diameter 6 mm
    Weight 37 g

    Specification values above are for model code CDUJB10-15D-M9NWS as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
