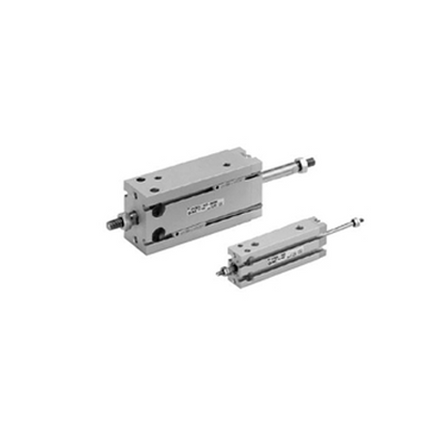

Name: SMC CUW Series, Free Mounting Cylinder, Double Acting, Double Rod, CDUW16-10D
Brand: SMC
SKU: CDUW16-10D
Price: 34.11 USD
Availability: InStock

SMC CUW Series, Free Mounting Cylinder, Double Acting, Double Rod, CDUW16-10D

VendorSMC

Description

OVERVIEW

Space-saving cylinder that can be directly installed on the cylinder side
With auto switch (CDU series: CDU, CDUW, CDUK, CDUKW, CDU-A, ZCDUK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
tube inner diameter	16	tube inner diameter 16mm
Types of port screws	-	M5X0.8 Rc1/8
cylinder stroke	10	cylinder stroke 10mm
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without

Specification — CDUW16-10D

Bore	16mm
Port thread	M5X0.8 Rc1/8
Stroke	10mm
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting, double rod
Cushion	Rubber bumper
Rod end male thread	M5X0.8
Min. operating pressure	0.10 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Lubrication	Non-lube
Fluid temp. min	-10 °C
Fluid temp. max	60 °C
Ambient temp. min	-10 °C
Weight	81 g

Specification values above are for model code CDUW16-10D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW Space-saving cylinder that can be directly installed on the cylinder side With auto switch (CDU series: CDU, CDUW, CDUK,... Read more

SKU: CDUW16-10D

$34.11 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal
