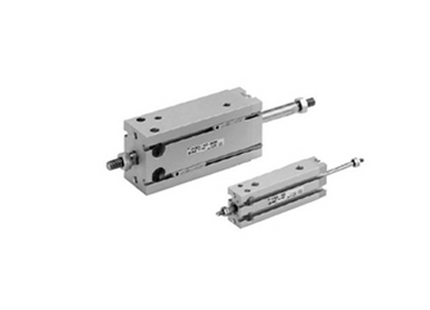

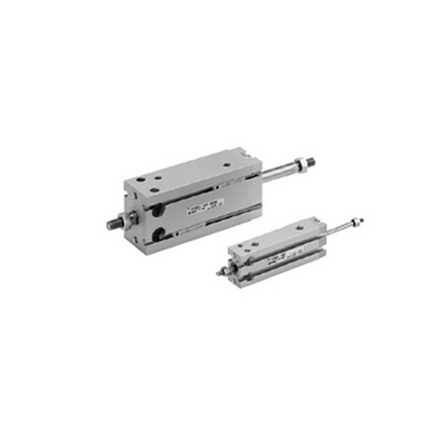

Name: SMC CUW Series, Free Mounting Cylinder, Double Acting, Double Rod, CUW20-40D
Brand: SMC
SKU: CUW20-40D
Price: 31.88 USD
Availability: InStock

SMC CUW Series, Free Mounting Cylinder, Double Acting, Double Rod, CUW20-40D

VendorSMC

Description

OVERVIEW

Space-saving cylinder that can be directly installed on the cylinder side
With auto switch (CDU series: CDU, CDUW, CDUK, CDUKW, CDU-A, ZCDUK)

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	M5X0.8 Rc1/8
cylinder stroke	40	cylinder stroke 40mm
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without

Specification — CUW20-40D

Bore	20mm
Port thread	M5X0.8 Rc1/8
Stroke	40mm
Auto switch	Without auto switch
Port size	M5X0.8
Fluid	Air
Action	Double acting, double rod
Cushion	Rubber bumper
Rod end male thread	M6X1.0
Min. operating pressure	0.08 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Lubrication	Non-lube
Ambient temp. min	-10 °C
Ambient temp. max	70 °C
Piston speed min	50 mm/s
Weight	223 g

Specification values above are for model code CUW20-40D as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
