Name: SMC CXS Series Dual Rod Cylinder, Double Rod Type, End-Lock, CXSL20-30R
Brand: SMC
SKU: CXSL20-30R
Price: 147.66 USD
Availability: InStock

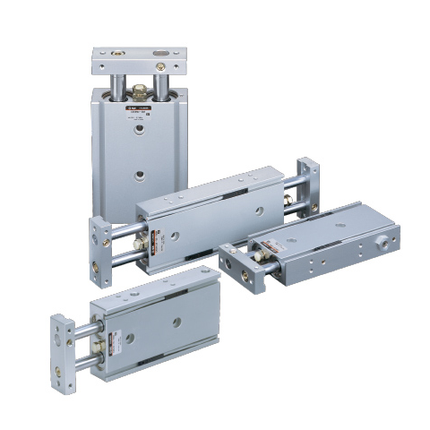

SMC CXS Series Dual Rod Cylinder, Double Rod Type, End-Lock, CXSL20-30R

VendorSMC

Description

OVERVIEW

Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.

For Pick & Place with thin/compact/high precision guide function

Specification item	model symbol	Specification information
bearing type	L	ball bush bearing
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	M screw Rc1/8
cylinder stroke	30
auto switch	-	Without auto switch Built-in magnet cylinder
Auto switch additional symbol	-	2 with or without

Specification — CXSL20-30R

Bore	20mm
Stroke	30mm
Fluid	Air
Magnet	Built-in magnet
Port size	M5X0.8
Mounting	Basic
Min. operating pressure	0.3 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Fluid temp. min	-10 ℃
Fluid temp. max	60 ℃
Piston speed min	30 mm/s
Piston speed max	700 mm/s
Allowable kinetic energy	0.17 J
Weight	560 g

Specification values above are for model code CXSL20-30R as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact... Read more

SKU: CXSL20-30R

$147.66 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.

For Pick & Place with thin/compact/high precision guide function

Specification item	model symbol	Specification information
bearing type	L	ball bush bearing
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	M screw Rc1/8
cylinder stroke	30
auto switch	-	Without auto switch Built-in magnet cylinder
Auto switch additional symbol	-	2 with or without

Specification — CXSL20-30R

Bore	20mm
Stroke	30mm
Fluid	Air
Magnet	Built-in magnet
Port size	M5X0.8
Mounting	Basic
Min. operating pressure	0.3 MPa
Max. operating pressure	0.7 MPa
Proof pressure	1.05 MPa
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Fluid temp. min	-10 ℃
Fluid temp. max	60 ℃
Piston speed min	30 mm/s
Piston speed max	700 mm/s
Allowable kinetic energy	0.17 J
Weight	560 g

Specification values above are for model code CXSL20-30R as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
