OVERVIEW

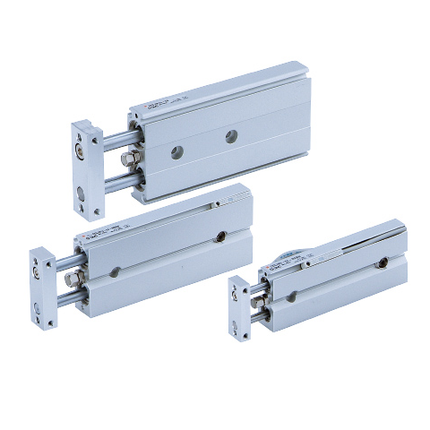

Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.

By making the dual rod cylinder CXS series compact, auto switches can be checked from 4 directions, and axial piping can also be selected (tube inner diameter 6, 10)

Specification item	model symbol	Specification information
bearing type	M	plain bearing
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	M thread (ø6 to ø25), Rc 1/8 (ø32)
Piping type	-	Standard piping (ø6 to ø32)
cylinder stroke	10	cylinder stroke 10mm
auto switch	M9N	Solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 0.5 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact... Read more

SKU: CXSJM20-10-M9N

$185.94 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Description

OVERVIEW

Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.

By making the dual rod cylinder CXS series compact, auto switches can be checked from 4 directions, and axial piping can also be selected (tube inner diameter 6, 10)

Specification item	model symbol	Specification information
bearing type	M	plain bearing
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	M thread (ø6 to ø25), Rc 1/8 (ø32)
Piping type	-	Standard piping (ø6 to ø32)
cylinder stroke	10	cylinder stroke 10mm
auto switch	M9N	Solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 0.5 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard
