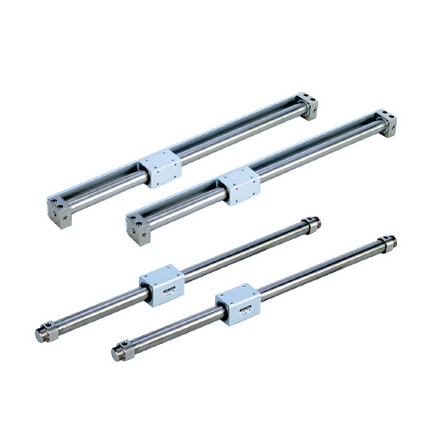

SMC CY3B Series Magnet Type Rodless Cylinder, CY3B25-380

Description

OVERVIEW


With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

  • Further upgrade of the CY1 series
  • Same mounting dimensions as the CY1 series Improved bearing performance, reduced sliding resistance
  • Standardized NPT thread and G thread.



Specification item model symbol Specification information
tube inner diameter 25 tube inner diameter 25mm
Types of port screws - Rc/M screw
cylinder stroke 380
Custom made specifications - standard



Product form

OVERVIEW With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a... Read more

SKU: CY3B25-380

$218.09 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

    • Further upgrade of the CY1 series
    • Same mounting dimensions as the CY1 series Improved bearing performance, reduced sliding resistance
    • Standardized NPT thread and G thread.



    Specification item model symbol Specification information
    tube inner diameter 25 tube inner diameter 25mm
    Types of port screws - Rc/M screw
    cylinder stroke 380
    Custom made specifications - standard
