Description

OVERVIEW

With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

Further upgrade of the CY1 series
Same mounting dimensions as the CY1 series Improved bearing performance, reduced sliding resistance
Standardized NPT thread and G thread.

Specification item	model symbol	Specification information
tube inner diameter	25	tube inner diameter 25mm
Types of port screws	-	Rc/M screw
cylinder stroke	400	Cylinder stroke 400mm
Custom made specifications	-	standard

Product form

OVERVIEW With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a... Read more

$278.89 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Nov 25, 2024 17:00:00 +0900

Description

OVERVIEW

With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

Further upgrade of the CY1 series
Same mounting dimensions as the CY1 series Improved bearing performance, reduced sliding resistance
Standardized NPT thread and G thread.

Specification item	model symbol	Specification information
tube inner diameter	25	tube inner diameter 25mm
Types of port screws	-	Rc/M screw
cylinder stroke	400	Cylinder stroke 400mm
Custom made specifications	-	standard

Reviews

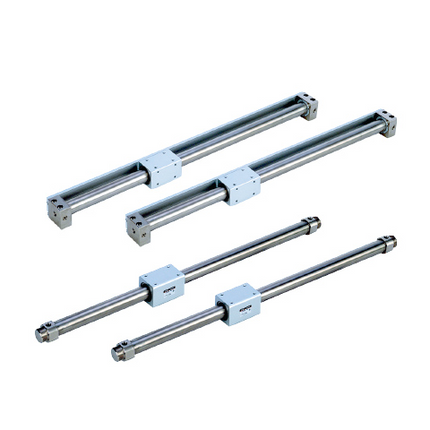

Name: SMC CY3B Series Magnet Type Rodless Cylinder, CY3B25-400
Brand: SMC
Price: 278.89 USD

SMC CY3B Series Magnet Type Rodless Cylinder, CY3B25-400
