Description

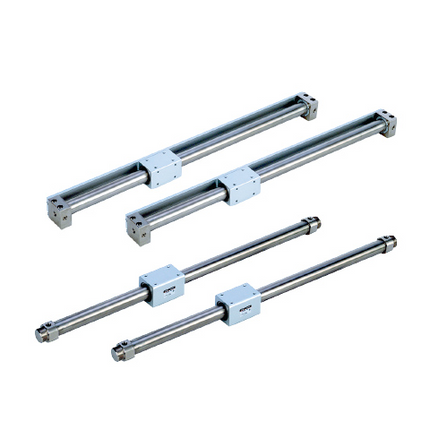

SMC CY3B6-250 — CY3B Series Magnet Type Rodless Cylinder. This code specifies 6mm bore, 250mm stroke, double acting.
Specification — CY3B6-250
| Bore |
6mm |
| Stroke |
250mm |
| Fluid |
Air |
| Action |
Double acting |
| Cushion |
Rubber bumper |
| Min. operating pressure |
0.16 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.05 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Piston speed max |
500 mm/s |
| Weight |
72 g |
Specification values above are for model code CY3B6-250 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CY3B series
- Further upgrade of the CY1 series
- Same mounting dimensions as the CY1 series Improved bearing performance, reduced sliding resistance
- Standardized NPT thread and G thread.
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
