Description

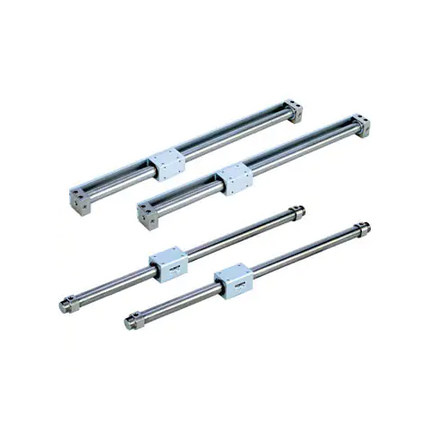

SMC CY3R15-500 — CY3R Series Magnet Type Rodless Cylinder, Direct Mounting Type. This code specifies 15mm bore, 500mm stroke, double acting.
Specification — CY3R15-500
| Bore |
15mm |
| Port thread |
Rc |
| Stroke |
500mm |
| Fluid |
Air |
| Action |
Double acting |
| Cushion |
Rubber bumper |
| Min. operating pressure |
0.16 MPa |
| Max. operating pressure |
0.7 MPa |
| Proof pressure |
1.05 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Piston speed max |
500 mm/s |
| Weight |
672 g |
Specification values above are for model code CY3R15-500 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
About the SMC CY3R series
- Further upgrade of the CY1 series
- Same mounting dimensions as the CY1 series Improved bearing performance, reduced sliding resistance
- Standardized NPT thread and G thread.
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
