Description

OVERVIEW

With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

Further upgrade of the CY1 series
Same mounting dimensions as the CY1 series Improved bearing performance, reduced sliding resistance
Standardized NPT thread and G thread.

Specification item	model symbol	Specification information
Piping type	-	standard type
tube inner diameter	15	tube inner diameter 15mm
Types of port screws	-	Rc
cylinder stroke	700	Cylinder stroke 700mm
With/without switch rail	-	Attaching the switch rail
auto switch	-	ø6 to ø15, ø25 to ø63: No auto switch (Built-in magnet); ø20: Without auto switch, for contact (built-in magnet)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a... Read more

SKU: CY3R15-700

$184.77 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

Further upgrade of the CY1 series
Same mounting dimensions as the CY1 series Improved bearing performance, reduced sliding resistance
Standardized NPT thread and G thread.

Specification item	model symbol	Specification information
Piping type	-	standard type
tube inner diameter	15	tube inner diameter 15mm
Types of port screws	-	Rc
cylinder stroke	700	Cylinder stroke 700mm
With/without switch rail	-	Attaching the switch rail
auto switch	-	ø6 to ø15, ø25 to ø63: No auto switch (Built-in magnet); ø20: Without auto switch, for contact (built-in magnet)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

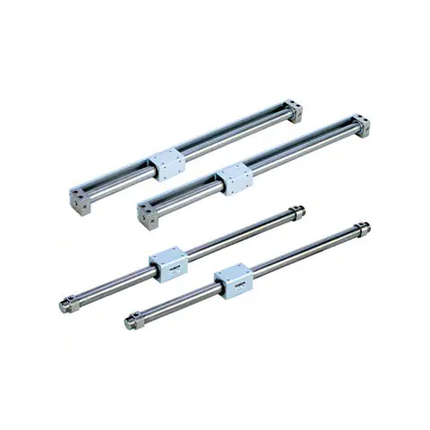

Name: SMC CY3R Series Magnet Type Rodless Cylinder, Direct Mounting Type, CY3R15-700
Brand: SMC
SKU: CY3R15-700
Price: 184.77 USD
Availability: InStock

SMC CY3R Series Magnet Type Rodless Cylinder, Direct Mounting Type, CY3R15-700
