Description

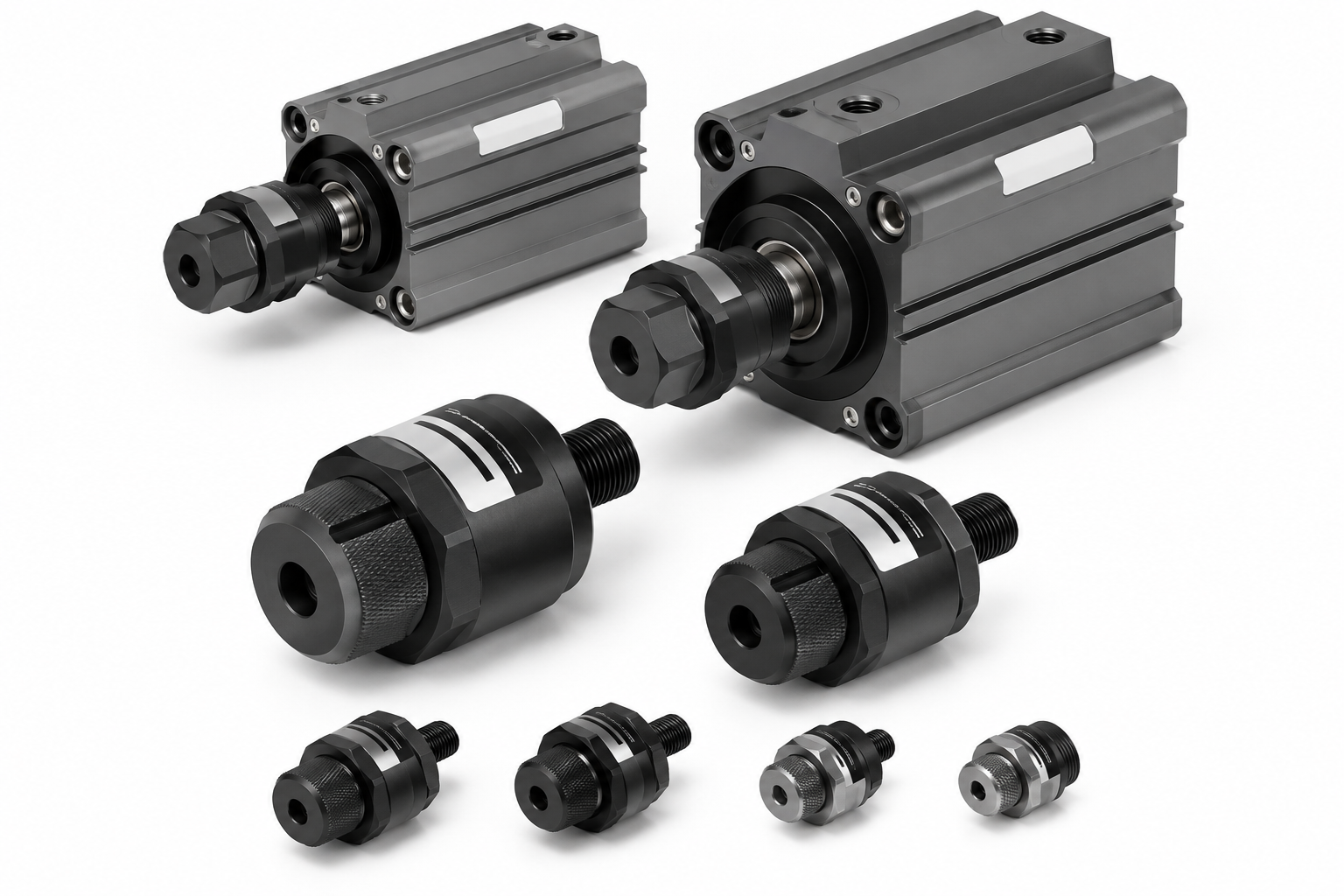

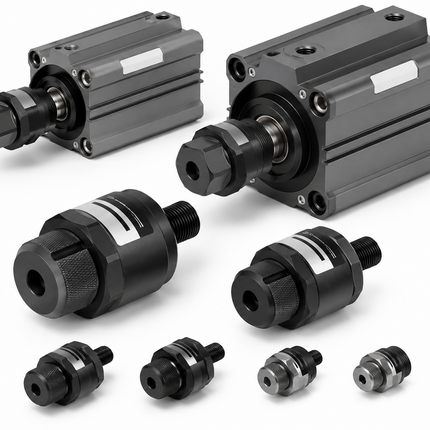

SMC JB25-6-100 — JB series floating joint, sized for ø25 compact cylinders. It absorbs shaft misalignment and out-of-parallel mounting between the rod and the driven part, so the two do not have to be aligned during installation.
Specification — JB25-6-100
| Type |
Floating joint, compact cylinder type |
| For cylinder bore |
ø25 mm |
| Rod thread |
M6 |
| Overall length |
100 mm |
| Product weight |
70 g |
What it does
A cylinder rod is made to take axial load, not side load. When the rod and the driven part are even slightly off centre or out of parallel, every stroke pushes the rod sideways, which wears the rod seal and the bushing and eventually bends the rod. A floating joint takes that movement in the joint instead, and removes the alignment work at installation.
Typical use
Fitted at the rod end of compact cylinders driving slides, gates and jigs — anywhere the cylinder and the load cannot be aligned precisely, or where the load position shifts during the stroke.
Ordering
Order by the full code JB25-6-100. The first number gives the cylinder bore the joint is designed for, the second gives the rod thread and the third the length, so all three must match the cylinder. Tell us your cylinder model and we will confirm the matching joint.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
