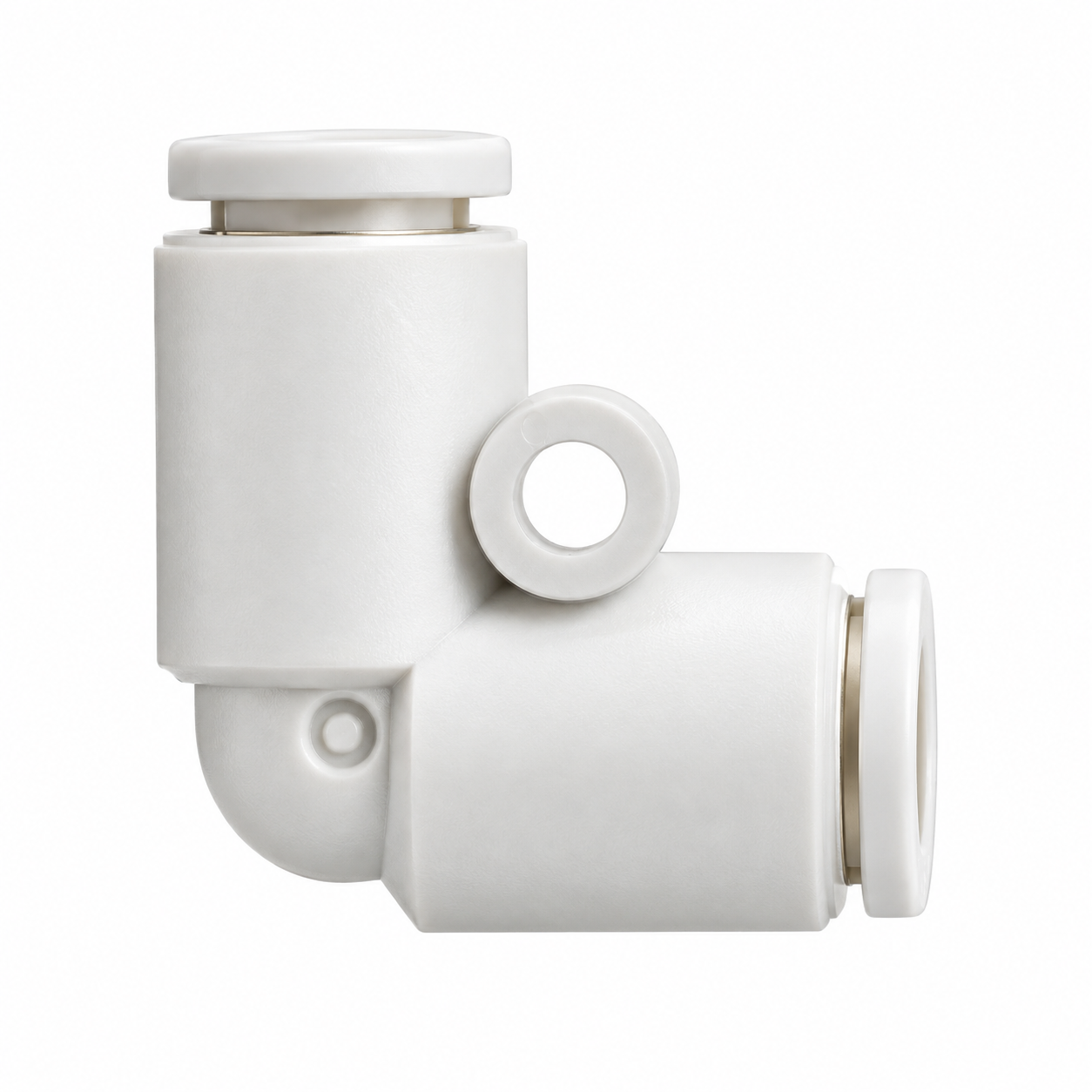

SMC KQ2L04-00A — KQ2L series one-touch fitting, union elbow, metric size. Push the tube in and it locks; press the collar to release. The 90° body turns the line without a bend radius in the tube.
Specification — KQ2L04-00A
| Type |
Union elbow, tube to tube |
| Tube O.D. |
ø4 mm, both ports |
| Body material |
Brass, electroless nickel plated |
| Operating pressure |
Vacuum −100 kPa to 1.0 MPa |
| Product weight |
1.9 g |
About the KQ2 series
KQ2 covers 51 body shapes across the range, in brass or electroless nickel plated brass, for metric tube from ø2 to ø16 mm and inch tube from 1/8" to 1/2". Rated for vacuum down to −100 kPa, so the same fitting serves pressure and vacuum lines. The elbow body keeps the tube run tight against the machine frame where a swept bend will not fit.
Typical use
Cylinder and valve ports in confined spaces, panel entries, and any run that has to turn immediately at the connection.
Ordering
Order by the full code KQ2L04-00A. The digits give the tube O.D. and the suffix gives the port type and surface treatment, so one character changes the part. Need another tube size or a threaded elbow in the KQ2L range? Send the code and quantity and we will quote it.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
