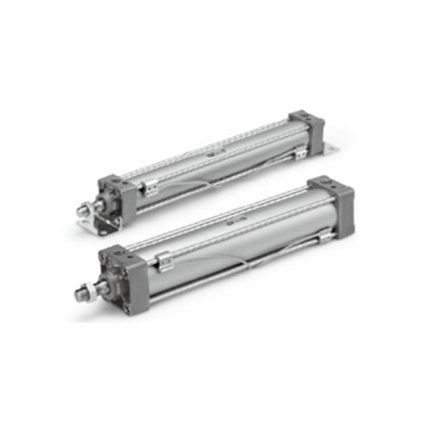

Name: SMC MB-Z Series Tie-Rod Cylinder. Double Acting, Single Rod, MDBB63-30Z
Brand: SMC
SKU: MDBB63-30Z
Price: 121.46 USD
Availability: InStock

SMC MB-Z Series Tie-Rod Cylinder. Double Acting, Single Rod, MDBB63-30Z

VendorSMC

Description

OVERVIEW

Maximum weight reduced by 10% by changing the shape of the cover
Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Basic type
tube inner diameter	63	Bore size 63mm
Types of port screws	-	Rc
cylinder stroke	30
Cylinder additional symbol	-	No bellows, air cushion
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	No bellows, air cushion
Attachment 1	-	no metal fittings
Accessories 2	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — MDBB63-30Z

Mounting	Basic
Bore	63mm
Port thread	Rc
Stroke	30
Auto switch	Without auto switch
Port size	3/8
Fluid	Air
Action	Double acting
Rod end male thread	M18X1.5
Min. operating pressure	0.05 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temp. min	-10 ℃
Fluid temp. max	60 ℃
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Weight	1,000 g

Specification values above are for model code MDBB63-30Z as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
