Description

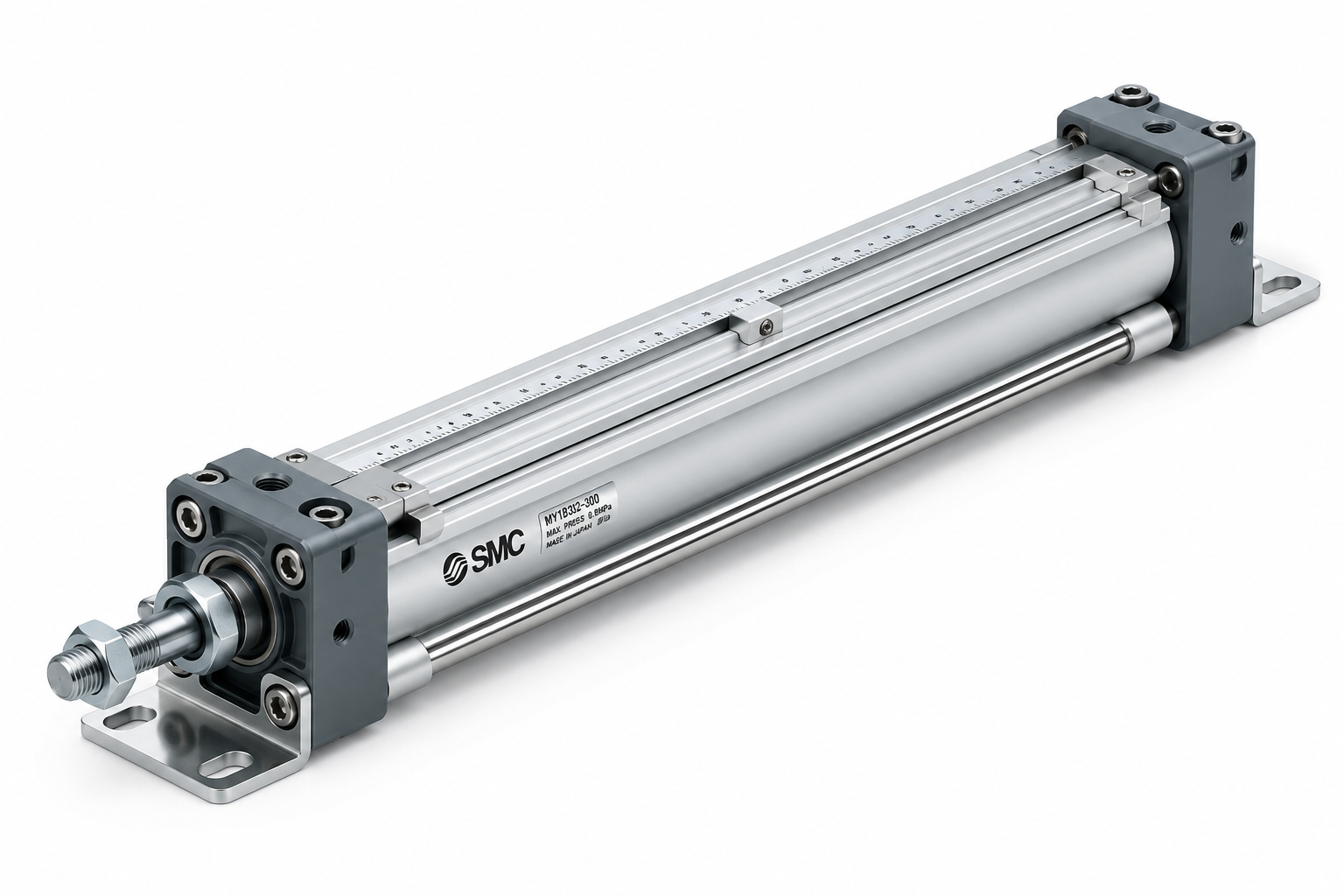

SMC MBL80-350Z — MB-Z series air cylinder, ø80 bore with 350 mm stroke, double acting single rod with foot mounting. Tie-rod construction on the standard mounting interface.
Specification — MBL80-350Z
| Series |
MB-Z (standard air cylinder) |
| Bore |
ø80 mm |
| Stroke |
350 mm |
| Action |
Double acting, single rod |
| Mounting |
L — foot |
| Magnet |
None (MDB prefix for auto switch versions) |
| Product weight |
5,850 g |
Force and rod loading at 350 mm
A ø80 bore gives roughly 3,000 N at 0.6 MPa. Extended 350 mm, that force is applied at the end of a rod carrying its own weight as well as the load, so buckling has to be checked against the stroke and not just the thrust. Where the load is offset at all, a guide or a floating joint at the rod end is the difference between a cylinder that lasts and one that wears its rod seal out in a season.
Foot mounting
Foot brackets bolt the body to a surface parallel to its axis, which suits a cylinder lying along a frame member. The thrust line sits off the bolt plane, so the bolts see a moment as well as shear — size them against the thrust rather than assuming.
What changed in the Z generation
Reshaped covers cut up to 10% from the mass of the previous design, with no change to the mounting dimensions, so a Z cylinder drops into an installation built for the older series.
Ordering
Order by the full code MBL80-350Z. Bore, stroke and mounting are in the code, and rod end fittings and pivot brackets can be added as suffixes. The 250 mm stroke (MBL80-250Z) is available in the same configuration.
Supply from Korea
Genuine SMC, stocked and shipped from Gyeonggi-do, Korea, with export packing and commercial documents prepared as standard.
