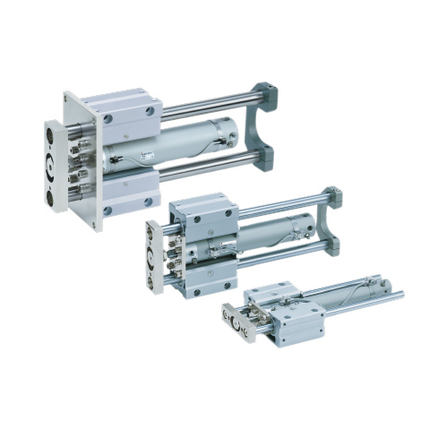

Name: SMC MGC Series Guided Cylinder, Compact Type, MGCLB32-150
Brand: SMC
SKU: MGCLB32-150
Price: 271.1 USD
Availability: InStock

SMC MGC Series Guided Cylinder, Compact Type, MGCLB32-150

VendorSMC

Description

OVERVIEW

The MGC guide cylinder is ideal for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional linear cylinder, and a non-rotation device. Features include standard air cushions, grease nipple, and switch capability. Other features include, slide or ball bushing bearings, compact design, adjustable air cushion, and lightweight guided actuator.

Linear movement unit with compact guide body and front plate
Compact, lightweight, and space-saving compatible

Specification item	model symbol	Specification information
form	-	doesn't exist
bearing type	L	ball bush bearing
Mounting support type	B	Basic type
tube inner diameter	32	Tube inner diameter 32mm
Types of port screws	-	M5X0.8, Rc
cylinder stroke	150	Cylinder stroke 150mm
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
With or without rear plate	-	no back plate
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — MGCLB32-150

Bore	32mm
Port thread	M5X0.8, Rc
Stroke	150mm
Auto switch	Without auto switch
Fluid	Air
Action	Double acting
Cushion	Air cushion
Min. operating pressure	0.15 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temp. min	-10 ℃
Fluid temp. max	60 ℃
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Lubrication	Non-lube
Piston speed min	50 mm/s
Weight	2,839 g

Specification values above are for model code MGCLB32-150 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
