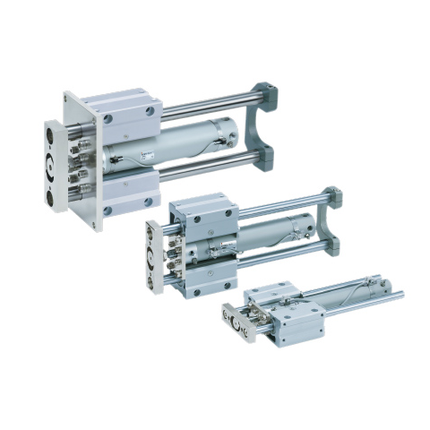

Name: SMC MGC Series Guided Cylinder, Compact Type, MGCMB40-450-R
Brand: SMC
SKU: MGCMB40-450-R
Price: 361.67 USD
Availability: InStock

SMC MGC Series Guided Cylinder, Compact Type, MGCMB40-450-R

VendorSMC

Description

OVERVIEW

The MGC guide cylinder is ideal for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional linear cylinder, and a non-rotation device. Features include standard air cushions, grease nipple, and switch capability. Other features include, slide or ball bushing bearings, compact design, adjustable air cushion, and lightweight guided actuator.

Linear movement unit with compact guide body and front plate
Compact, lightweight, and space-saving compatible

Specification item	model symbol	Specification information
form	-	doesn't exist
bearing type	M	plain bearing
Mounting support type	B	Basic type
tube inner diameter	40	tube inner diameter 40mm
Types of port screws	-	M5X0.8, Rc
cylinder stroke	450	Cylinder stroke 450mm
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
With or without rear plate	R	Attaching the rear plate
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — MGCMB40-450-R

Bore	40mm
Port thread	M5X0.8, Rc
Stroke	450mm
Auto switch	Without auto switch
Fluid	Air
Action	Double acting
Cushion	Air cushion
Min. operating pressure	0.15 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Lubrication	Non-lube
Piston speed min	50 mm/s
Piston speed max	750 mm/s
Rod diameter	16 mm
Weight	7,501 g

Specification values above are for model code MGCMB40-450-R as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
