Description

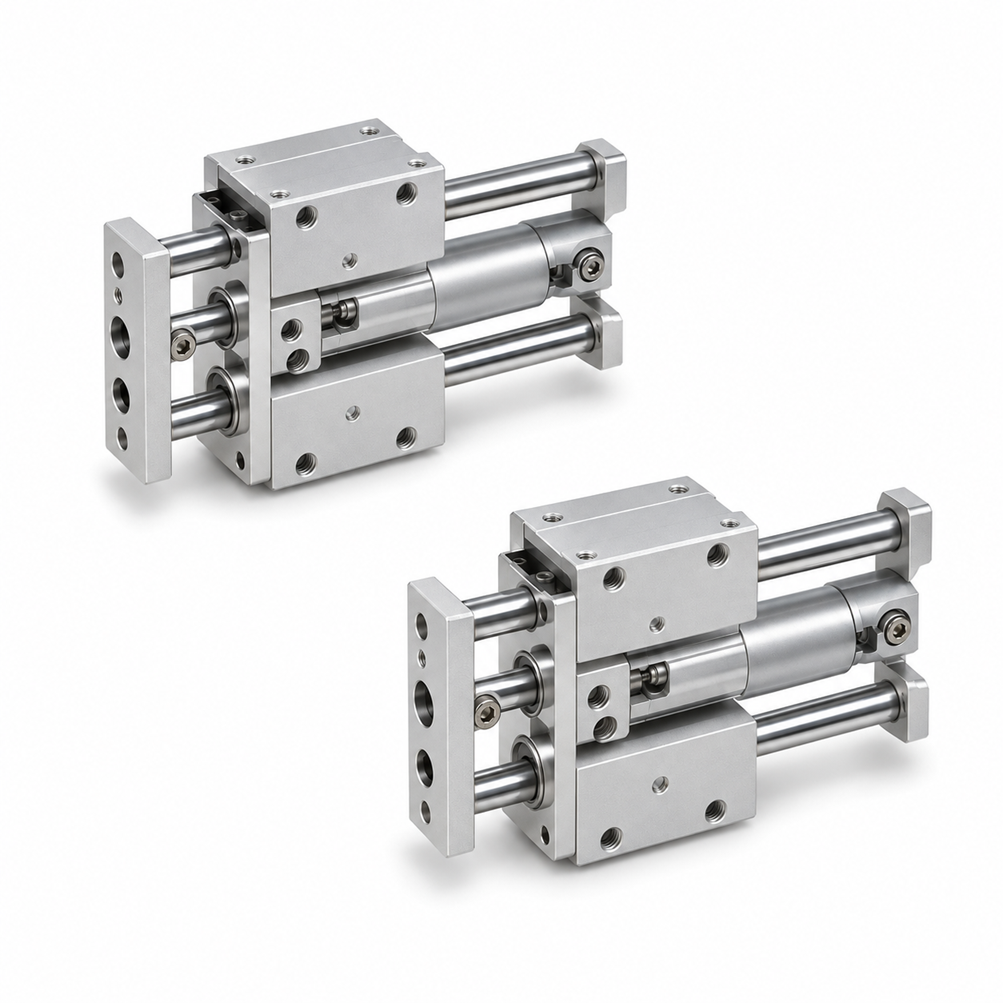

SMC MGCMB25-200-R — genuine SMC pneumatic cylinder from the MGC series.
Specification — MGCMB25-200-R
| Bore |
25mm |
| Port thread |
M5X0.8, Rc |
| Stroke |
200mm |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Action |
Double acting |
| Cushion |
Air cushion |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Weight |
2,458 g |
This code is built from bore 25mm, port thread M5X0.8, Rc, stroke 200mm, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MGCMB25-200-R.
Supply from Korea
Ships from Korea with export packing and commercial documents prepared as standard. Transit time is quoted with the order.
Related codes
Other variants we carry in this series: MGCMB25-250-R, MGCMB25-100-R. Send the code and quantity and we will confirm price and lead time.
