SMC MGF Series Guide Table, MGF100-90

Description

OVERVIEW

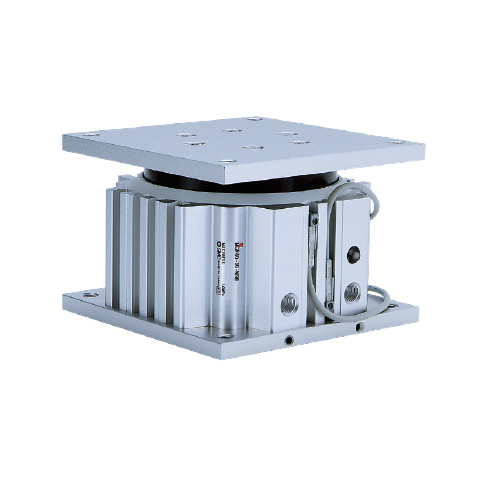

Series MGF guide tables are low profile, compact cylinders which utilize a large concentric guiding sleeve to provide excellent eccentric load resistance. Mounting is possible from 2 directions. A built-in non-rotating mechanism prevents rotation of the table top. T-slots are provided on 3 faces of the MGF body *, allowing mounting of various brackets. Optional auto switches can be mounted on 4 faces of the body.

  • Compact type with reduced height
  • Thin cylinder with large-diameter guide that excels in internal eccentric load



Specification item model symbol Specification information
tube inner diameter 100 Tube inner diameter 100mm
Types of port screws - Rc
cylinder stroke 90
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard




Specification — MGF100-90

Bore 100mm
Port thread Rc
Stroke 90
Auto switch Without auto switch
Fluid Air
Action Double acting
Cushion Rubber bumper both ends
Min. operating pressure 0.1 MPa
Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Fluid temp. min -10 ℃
Fluid temp. max 60 ℃
Ambient temp. min -10 ℃
Ambient temp. max 60 ℃
Lubrication Non-lube
Piston speed min 20 mm/s
Weight 9,000 g

Specification values above are for model code MGF100-90 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

Product form

OVERVIEW Series MGF guide tables are low profile, compact cylinders which utilize a large concentric guiding sleeve to provide excellent... Read more

SKU: MGF100-90

$920.09 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    Series MGF guide tables are low profile, compact cylinders which utilize a large concentric guiding sleeve to provide excellent eccentric load resistance. Mounting is possible from 2 directions. A built-in non-rotating mechanism prevents rotation of the table top. T-slots are provided on 3 faces of the MGF body *, allowing mounting of various brackets. Optional auto switches can be mounted on 4 faces of the body.

    • Compact type with reduced height
    • Thin cylinder with large-diameter guide that excels in internal eccentric load



    Specification item model symbol Specification information
    tube inner diameter 100 Tube inner diameter 100mm
    Types of port screws - Rc
    cylinder stroke 90
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard




    Specification — MGF100-90

    Bore 100mm
    Port thread Rc
    Stroke 90
    Auto switch Without auto switch
    Fluid Air
    Action Double acting
    Cushion Rubber bumper both ends
    Min. operating pressure 0.1 MPa
    Max. operating pressure 1.0 MPa
    Proof pressure 1.5 MPa
    Fluid temp. min -10 ℃
    Fluid temp. max 60 ℃
    Ambient temp. min -10 ℃
    Ambient temp. max 60 ℃
    Lubrication Non-lube
    Piston speed min 20 mm/s
    Weight 9,000 g

    Specification values above are for model code MGF100-90 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
