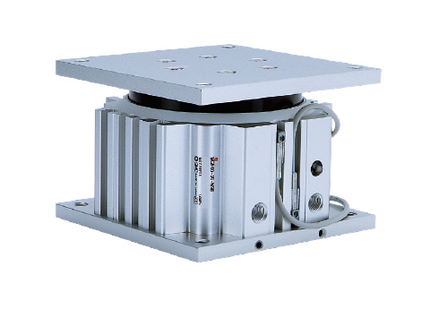

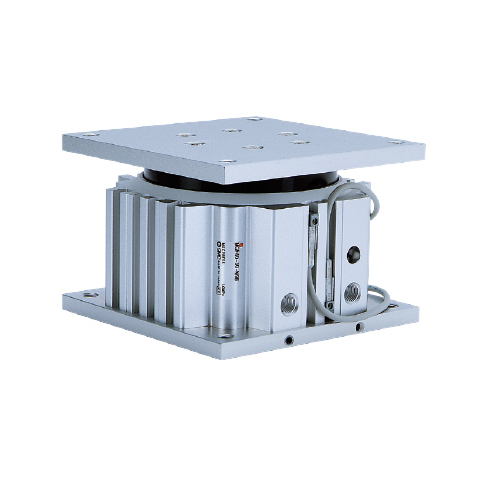

SMC MGF Series Guide Table, MGF40-50-M9BAL

Description

OVERVIEW


Series MGF guide tables are low profile, compact cylinders which utilize a large concentric guiding sleeve to provide excellent eccentric load resistance. Mounting is possible from 2 directions. A built-in non-rotating mechanism prevents rotation of the table top. T-slots are provided on 3 faces of the MGF body *, allowing mounting of various brackets. Optional auto switches can be mounted on 4 faces of the body.

  • Compact type with reduced height
  • Thin cylinder with large-diameter guide that excels in internal eccentric load



Specification item model symbol Specification information
tube inner diameter 40 tube inner diameter 40mm
Types of port screws - Rc
cylinder stroke 50 cylinder stroke 50mm
auto switch M9BAL Water resistance 2-color display, solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 3 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol - 2 with or without
Custom made specifications - standard




Product form

OVERVIEW Series MGF guide tables are low profile, compact cylinders which utilize a large concentric guiding sleeve to provide excellent... Read more

SKU: MGF40-50-M9BAL

$777.62 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      Series MGF guide tables are low profile, compact cylinders which utilize a large concentric guiding sleeve to provide excellent eccentric load resistance. Mounting is possible from 2 directions. A built-in non-rotating mechanism prevents rotation of the table top. T-slots are provided on 3 faces of the MGF body *, allowing mounting of various brackets. Optional auto switches can be mounted on 4 faces of the body.

      • Compact type with reduced height
      • Thin cylinder with large-diameter guide that excels in internal eccentric load



      Specification item model symbol Specification information
      tube inner diameter 40 tube inner diameter 40mm
      Types of port screws - Rc
      cylinder stroke 50 cylinder stroke 50mm
      auto switch M9BAL Water resistance 2-color display, solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 3 m, applied voltage: DC24V (DC10 to 28V)
      Auto switch additional symbol - 2 with or without
      Custom made specifications - standard
