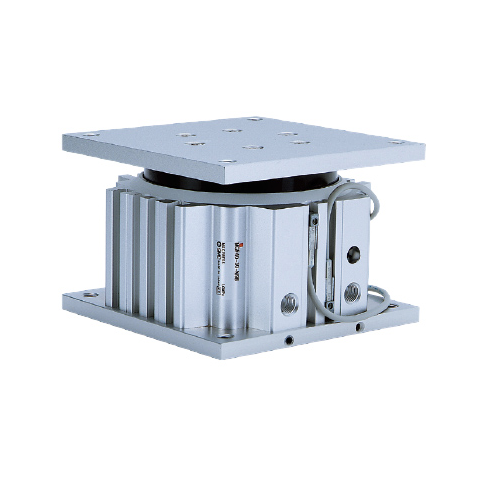

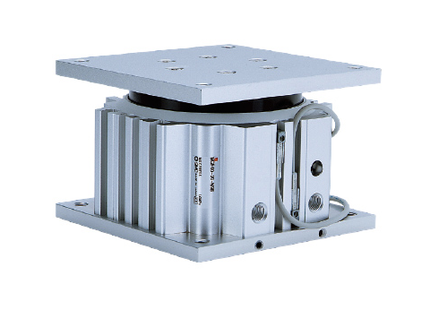

Name: SMC MGF Series Guide Table, MGF40-50-M9BZ
Brand: SMC
SKU: MGF40-50-M9BZ
Price: 486.18 USD
Availability: InStock

SMC MGF Series Guide Table, MGF40-50-M9BZ

VendorSMC

Description

OVERVIEW

Series MGF guide tables are low profile, compact cylinders which utilize a large concentric guiding sleeve to provide excellent eccentric load resistance. Mounting is possible from 2 directions. A built-in non-rotating mechanism prevents rotation of the table top. T-slots are provided on 3 faces of the MGF body *, allowing mounting of various brackets. Optional auto switches can be mounted on 4 faces of the body.

Compact type with reduced height
Thin cylinder with large-diameter guide that excels in internal eccentric load

Specification item	model symbol	Specification information
tube inner diameter	40	tube inner diameter 40mm
Types of port screws	-	Rc
cylinder stroke	50	cylinder stroke 50mm
auto switch	M9BZ	Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 5 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Specification — MGF40-50-M9BZ

Bore	40mm
Port thread	Rc
Stroke	50mm
Fluid	Air
Action	Double acting
Cushion	Rubber bumper both ends
Min. operating pressure	0.1 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Lubrication	Non-lube
Piston speed min	20 mm/s
Piston speed max	200 mm/s
Rod diameter	25 mm
Weight	2,000 g

Specification values above are for model code MGF40-50-M9BZ as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
