Description

OVERVIEW

The series MGG guided cylinder is ideally suited for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional cylinder, linear motion guide, and non-rotation device. Features include built-in shock absorbers, finite stroke adjustment, bumpers, and switch capability. Other features include: Slide or ball bushing bearings available, built-in shock absorbers and stroke adjustments, high degree of non-rotating accuracy, and high load capabilities.

Compact integration of basic cylinder and guide rod
Linear motion unit that realizes lateral load resistance and high-precision anti-rotation

Specification item	model symbol	Specification information
bearing type	L	ball bush bearing
Mounting support type	B	Basic type
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	Rc
cylinder stroke	75	Cylinder stroke 75mm
Lock position	H	Head side lock
Format of manual release	L	Lock type
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting bracket	-	doesn't exist
Custom made specifications	-	standard

Product form

OVERVIEW The series MGG guided cylinder is ideally suited for material handling applications involving stopping, lifting, and pushing. It combines... Read more

SKU: MGGLB20-75-HL

$395.09 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Description

OVERVIEW

The series MGG guided cylinder is ideally suited for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional cylinder, linear motion guide, and non-rotation device. Features include built-in shock absorbers, finite stroke adjustment, bumpers, and switch capability. Other features include: Slide or ball bushing bearings available, built-in shock absorbers and stroke adjustments, high degree of non-rotating accuracy, and high load capabilities.

Compact integration of basic cylinder and guide rod
Linear motion unit that realizes lateral load resistance and high-precision anti-rotation

Specification item	model symbol	Specification information
bearing type	L	ball bush bearing
Mounting support type	B	Basic type
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	Rc
cylinder stroke	75	Cylinder stroke 75mm
Lock position	H	Head side lock
Format of manual release	L	Lock type
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting bracket	-	doesn't exist
Custom made specifications	-	standard

Reviews

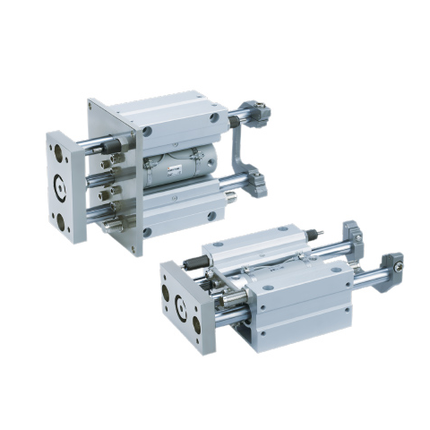

Name: SMC MGG Series Guided Cylinder, End-Lock Type, MGGLB20-75-HL
Brand: SMC
SKU: MGGLB20-75-HL
Price: 395.09 USD

SMC MGG Series Guided Cylinder, End-Lock Type, MGGLB20-75-HL
