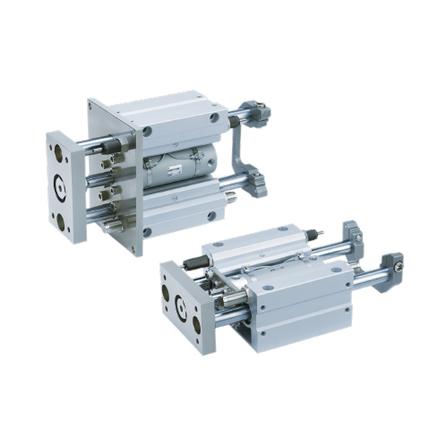

Name: SMC MGG Series Guided Cylinder, End-Lock Type, MGGLB32-200-HN
Brand: SMC
SKU: MGGLB32-200-HN
Price: 414.22 USD
Availability: InStock

SMC MGG Series Guided Cylinder, End-Lock Type, MGGLB32-200-HN

VendorSMC

Description

OVERVIEW

The series MGG guided cylinder is ideally suited for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional cylinder, linear motion guide, and non-rotation device. Features include built-in shock absorbers, finite stroke adjustment, bumpers, and switch capability. Other features include: Slide or ball bushing bearings available, built-in shock absorbers and stroke adjustments, high degree of non-rotating accuracy, and high load capabilities.

Compact integration of basic cylinder and guide rod
Linear motion unit that realizes lateral load resistance and high-precision anti-rotation

Specification item	model symbol	Specification information
bearing type	L	ball bush bearing
Mounting support type	B	Basic type
tube inner diameter	32	Tube inner diameter 32mm
Types of port screws	-	Rc
cylinder stroke	200	cylinder stroke 200mm
Lock position	H	Head side lock
Format of manual release	N	Non-lock type
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting bracket	-	doesn't exist
Custom made specifications	-	standard

Specification — MGGLB32-200-HN

Bore	32mm
Port thread	Rc
Stroke	200mm
Auto switch	Without auto switch
Fluid	Air
Action	Double acting
Cushion	Rubber bumper
Min. operating pressure	0.15 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Lubrication	Non-lube
Piston speed min	50 mm/s
Piston speed max	1000 mm/s
Rod diameter	12 mm
Weight	4,920 g

Specification values above are for model code MGGLB32-200-HN as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
