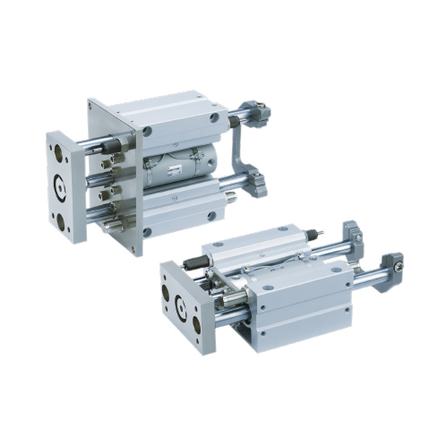

SMC MGG Series Guided Cylinder, MGGLB20-100-M9BL

Description

OVERVIEW


The series MGG guided cylinder is ideally suited for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional cylinder, linear motion guide, and non-rotation device. Features include built-in shock absorbers, finite stroke adjustment, bumpers, and switch capability. Other features include: Slide or ball bushing bearings available, built-in shock absorbers and stroke adjustments, high degree of non-rotating accuracy, and high load capabilities.

  • Compact integration of basic cylinder and guide rod
  •  Linear motion unit that realizes lateral load resistance and high-precision anti-rotation



Specification item model symbol Specification information
form - doesn't exist
bearing type L ball bush bearing
Mounting support type B Basic type
tube inner diameter 20 tube inner diameter 20mm
Types of port screws - Rc
cylinder stroke 100 cylinder stroke 100mm
Stroke adjustment symbol - doesn't exist
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
auto switch M9BL Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 3 m, applied voltage: DC24V (DC10 to 28V)
Auto switch additional symbol - 2 with or without
Auto switch mounting bracket - doesn't exist
Custom made specifications - standard



Product form

OVERVIEW The series MGG guided cylinder is ideally suited for material handling applications involving stopping, lifting, and pushing. It combines... Read more

SKU: MGGLB20-100-M9BL

$459.98 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      The series MGG guided cylinder is ideally suited for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional cylinder, linear motion guide, and non-rotation device. Features include built-in shock absorbers, finite stroke adjustment, bumpers, and switch capability. Other features include: Slide or ball bushing bearings available, built-in shock absorbers and stroke adjustments, high degree of non-rotating accuracy, and high load capabilities.

      • Compact integration of basic cylinder and guide rod
      •  Linear motion unit that realizes lateral load resistance and high-precision anti-rotation



      Specification item model symbol Specification information
      form - doesn't exist
      bearing type L ball bush bearing
      Mounting support type B Basic type
      tube inner diameter 20 tube inner diameter 20mm
      Types of port screws - Rc
      cylinder stroke 100 cylinder stroke 100mm
      Stroke adjustment symbol - doesn't exist
      dual stroke mark - No dual stroke mark
      cylinder stroke 2 - Cylinder stroke 2 None
      auto switch M9BL Solid-state auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 3 m, applied voltage: DC24V (DC10 to 28V)
      Auto switch additional symbol - 2 with or without
      Auto switch mounting bracket - doesn't exist
      Custom made specifications - standard
