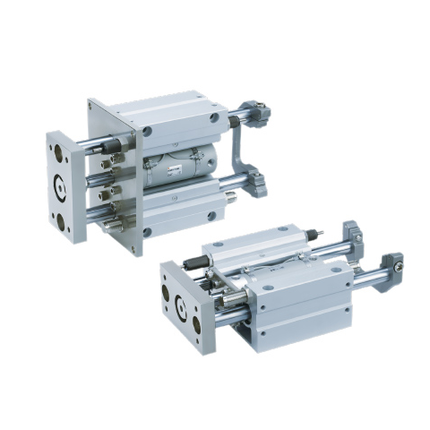

Name: SMC MGG Series Guided Cylinder, MGGLB32-250
Brand: SMC
SKU: MGGLB32-250
Price: 380.16 USD
Availability: InStock

SMC MGG Series Guided Cylinder, MGGLB32-250

VendorSMC

Description

OVERVIEW

The series MGG guided cylinder is ideally suited for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional cylinder, linear motion guide, and non-rotation device. Features include built-in shock absorbers, finite stroke adjustment, bumpers, and switch capability. Other features include: Slide or ball bushing bearings available, built-in shock absorbers and stroke adjustments, high degree of non-rotating accuracy, and high load capabilities.

Compact integration of basic cylinder and guide rod
Linear motion unit that realizes lateral load resistance and high-precision anti-rotation

Specification item	model symbol	Specification information
form	-	doesn't exist
bearing type	L	ball bush bearing
Mounting support type	B	Basic type
tube inner diameter	32	Tube inner diameter 32mm
Types of port screws	-	Rc
cylinder stroke	250	Cylinder stroke 250mm
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Auto switch mounting bracket	-	doesn't exist
Custom made specifications	-	standard

Specification — MGGLB32-250

Bore	32mm
Port thread	Rc
Stroke	250mm
Auto switch	Without auto switch
Fluid	Air
Action	Double acting
Cushion	Rubber bumper
Min. operating pressure	0.15 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temp. min	-10 ℃
Fluid temp. max	60 ℃
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Lubrication	Non-lube
Piston speed min	50 mm/s
Weight	5,109 g

Specification values above are for model code MGGLB32-250 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
