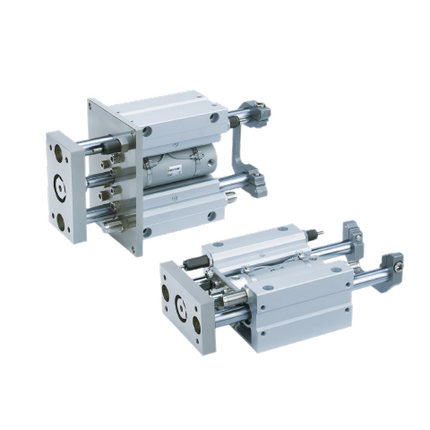

Name: SMC MGG Series Guided Cylinder, MGGMB20-100-A93L
Brand: SMC
SKU: MGGMB20-100-A93L
Price: 301.39 USD
Availability: InStock

SMC MGG Series Guided Cylinder, MGGMB20-100-A93L

VendorSMC

Description

OVERVIEW

The series MGG guided cylinder is ideally suited for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional cylinder, linear motion guide, and non-rotation device. Features include built-in shock absorbers, finite stroke adjustment, bumpers, and switch capability. Other features include: Slide or ball bushing bearings available, built-in shock absorbers and stroke adjustments, high degree of non-rotating accuracy, and high load capabilities.

Compact integration of basic cylinder and guide rod
Linear motion unit that realizes lateral load resistance and high-precision anti-rotation

Specification item	model symbol	Specification information
form	-	doesn't exist
bearing type	M	plain bearing
Mounting support type	B	Basic type
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	Rc
cylinder stroke	100	cylinder stroke 100mm
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
auto switch	A93L	Reed auto switch, grommet, with light, 2-wire type, side entry, lead wire 3 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Auto switch mounting bracket	-	doesn't exist
Custom made specifications	-	standard

Specification — MGGMB20-100-A93L

Bore	20mm
Port thread	Rc
Stroke	100mm
Fluid	Air
Action	Double acting
Cushion	Rubber bumper
Min. operating pressure	0.15 MPa
Max. operating pressure	1.0 MPa
Proof pressure	1.5 MPa
Fluid temp. min	-10 ℃
Fluid temp. max	60 ℃
Ambient temp. min	-10 ℃
Ambient temp. max	60 ℃
Lubrication	Non-lube
Piston speed min	50 mm/s
Piston speed max	1000 mm/s
Weight	2,000 g

Specification values above are for model code MGGMB20-100-A93L as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.
