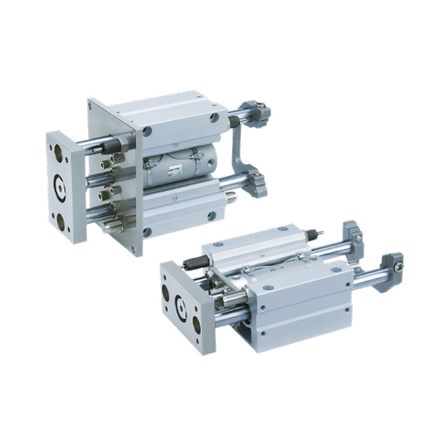

SMC MGG Series Guided Cylinder, MGGMF20-75

Description

OVERVIEW


The series MGG guided cylinder is ideally suited for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional cylinder, linear motion guide, and non-rotation device. Features include built-in shock absorbers, finite stroke adjustment, bumpers, and switch capability. Other features include: Slide or ball bushing bearings available, built-in shock absorbers and stroke adjustments, high degree of non-rotating accuracy, and high load capabilities.

  • Compact integration of basic cylinder and guide rod
  •  Linear motion unit that realizes lateral load resistance and high-precision anti-rotation



Specification item model symbol Specification information
form - doesn't exist
bearing type M plain bearing
Mounting support type F front mount flange type
tube inner diameter 20 tube inner diameter 20mm
Types of port screws - Rc
cylinder stroke 75 Cylinder stroke 75mm
Stroke adjustment symbol - doesn't exist
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Auto switch mounting bracket - doesn't exist
Custom made specifications - standard



Product form

OVERVIEW The series MGG guided cylinder is ideally suited for material handling applications involving stopping, lifting, and pushing. It combines... Read more

SKU: MGGMF20-75

$330.22 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 25, 2024 17:00:00 +0900

    Description

    OVERVIEW


    The series MGG guided cylinder is ideally suited for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional cylinder, linear motion guide, and non-rotation device. Features include built-in shock absorbers, finite stroke adjustment, bumpers, and switch capability. Other features include: Slide or ball bushing bearings available, built-in shock absorbers and stroke adjustments, high degree of non-rotating accuracy, and high load capabilities.

    • Compact integration of basic cylinder and guide rod
    •  Linear motion unit that realizes lateral load resistance and high-precision anti-rotation



    Specification item model symbol Specification information
    form - doesn't exist
    bearing type M plain bearing
    Mounting support type F front mount flange type
    tube inner diameter 20 tube inner diameter 20mm
    Types of port screws - Rc
    cylinder stroke 75 Cylinder stroke 75mm
    Stroke adjustment symbol - doesn't exist
    dual stroke mark - No dual stroke mark
    cylinder stroke 2 - Cylinder stroke 2 None
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Auto switch mounting bracket - doesn't exist
    Custom made specifications - standard
