Description

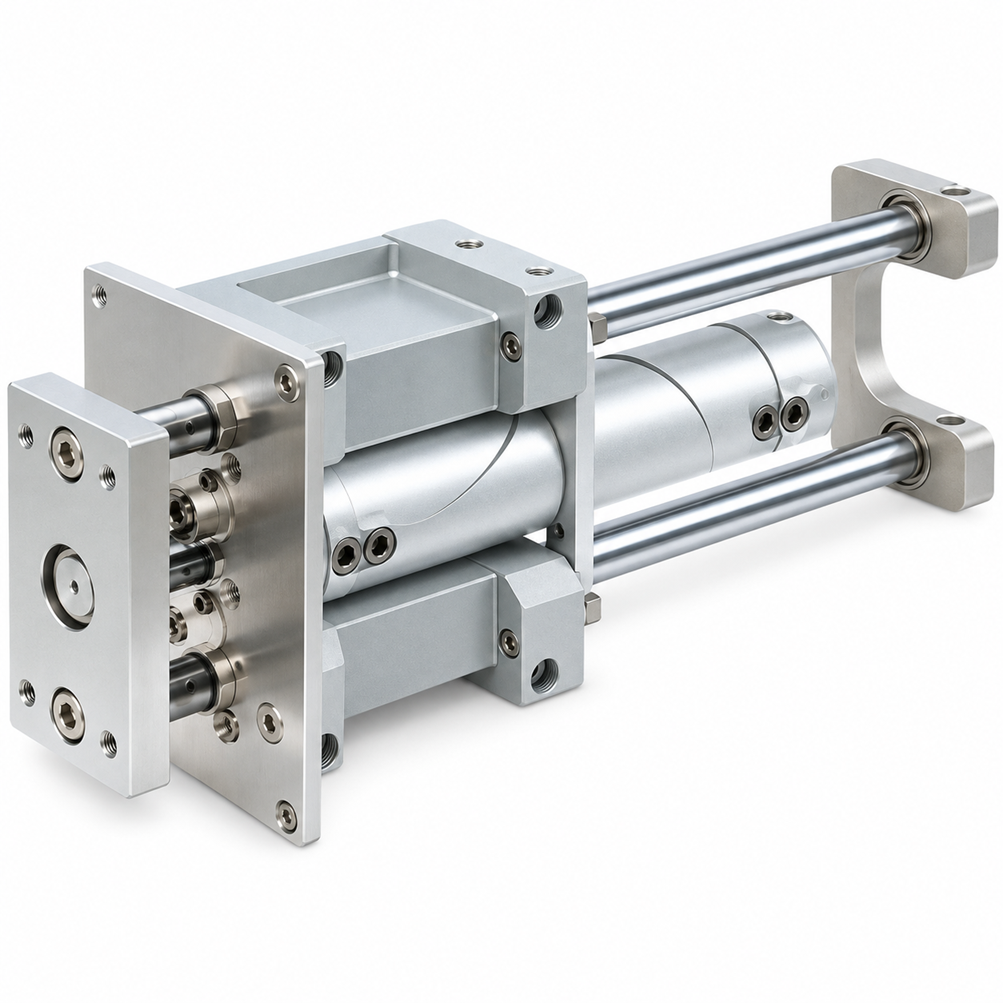

SMC MGGLB50-100 — genuine SMC pneumatic cylinder from the MGG series.
Specification — MGGLB50-100
| Bore |
50mm |
| Port thread |
Rc |
| Stroke |
100mm |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Action |
Double acting |
| Cushion |
Rubber bumper |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Weight |
12,911 g |
This code is built from bore 50mm, port thread Rc, stroke 100mm, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MGGLB50-100.
Supply from Korea
Stocked and shipped from Gyeonggi-do, Korea. Standard variants leave within a few working days; made-to-order suffixes are confirmed before processing.
Related codes
Other variants we carry in this series: MGGLB50-200, MGGLB50-200-A93L, MGGLB50-600. Send the code and quantity and we will confirm price and lead time.
