Description

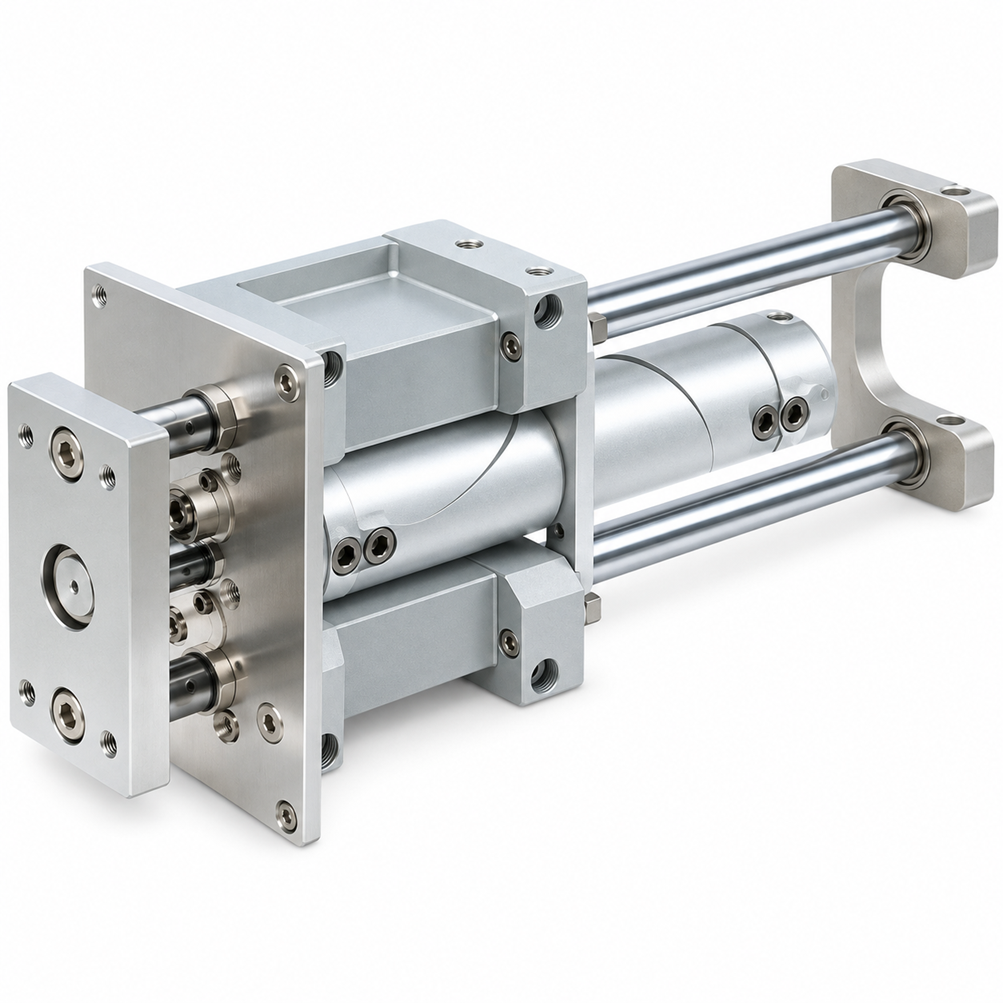

SMC MGGLB50-600 — genuine SMC pneumatic cylinder from the MGG series.
Specification — MGGLB50-600
| Bore |
50mm |
| Port thread |
Rc |
| Stroke |
600mm |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Action |
Double acting |
| Cushion |
Rubber bumper |
| Min. operating pressure |
0.15 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Weight |
19,071 g |
This code is built from bore 50mm, port thread Rc, stroke 600mm, auto switch Without auto switch. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MGGLB50-600.
Supply from Korea
Korean SMC distribution holds deep stock on this series, so common codes move quickly. Rarer suffixes are confirmed in writing before the order proceeds.
Related codes
Other variants we carry in this series: MGGLB50-200, MGGLB50-200-A93L, MGGLB50-100. Send the code and quantity and we will confirm price and lead time.
