Description

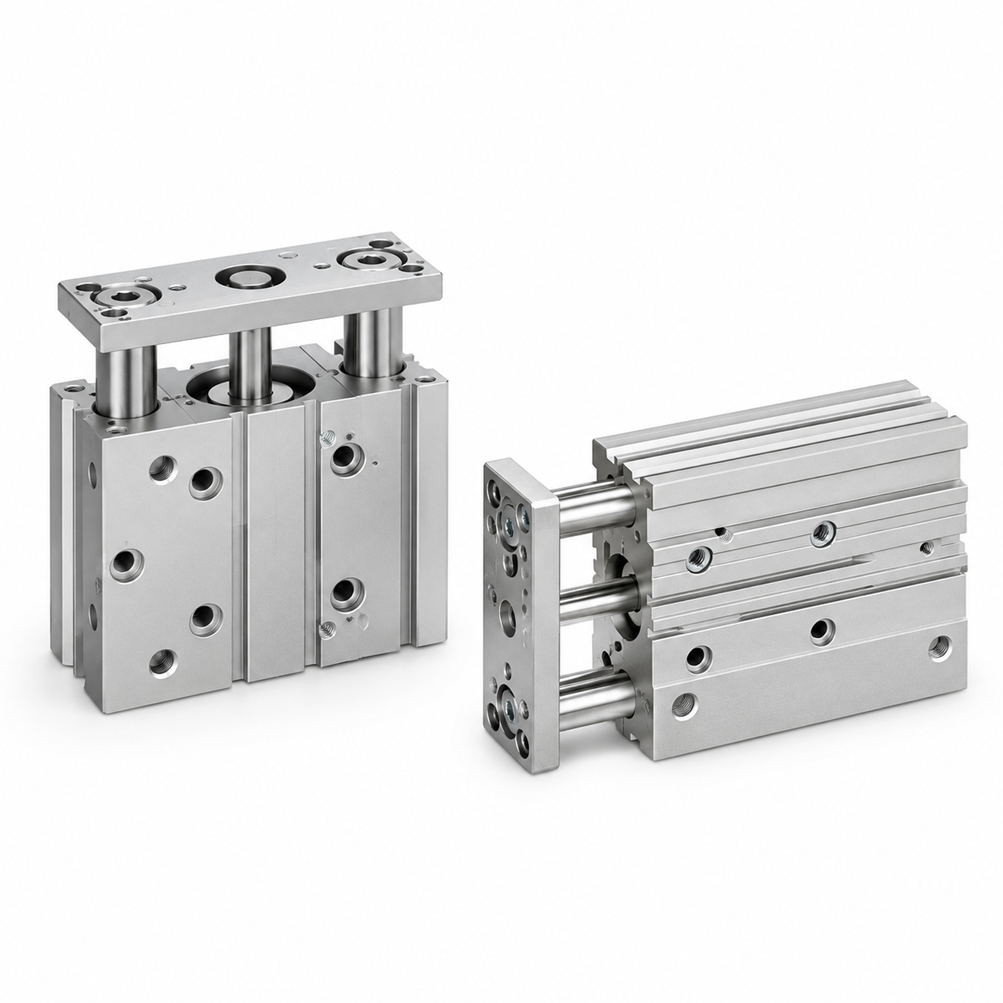

SMC MGPM40-350AZ — genuine SMC pneumatic cylinder from the MGP-Z series.
Specification — MGPM40-350AZ
| Bore |
40mm |
| Port thread |
M5X0.8, Rc |
| Stroke |
350mm |
| Fluid |
Air |
| Action |
Double acting |
| Min. operating pressure |
0.12 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Piston speed max |
500 mm/s |
| Rod diameter |
14 mm |
| Weight |
7,320 g |
This code is built from bore 40mm, port thread M5X0.8, Rc, stroke 350mm, fluid Air. SMC suffixes carry size, thread, cushion and switch options, so a single character changes the part — order by the full code MGPM40-350AZ.
Supply from Korea
Stocked and shipped from Gyeonggi-do, Korea. Standard variants leave within a few working days; made-to-order suffixes are confirmed before processing.
Related codes
Other variants we carry in this series: MGPM40-100Z, MGPM40-10Z, MGPM40-125Z, MGPM40-150Z, MGPM40-200Z, MGPM40-20Z. Send the code and quantity and we will confirm price and lead time.
