Description
SMC MGPS80-50 — MGPS Series. Compact Guide Cylinder, heavy duty. This code specifies 80mm bore, 50mm stroke, double acting, without auto switch.
Specification — MGPS80-50
| Bore |
80mm |
| Port thread |
Rc |
| Stroke |
50mm |
| Auto switch |
Without auto switch |
| Fluid |
Air |
| Action |
Double acting |
| Cushion |
Rubber bumper both ends |
| Min. operating pressure |
0.1 MPa |
| Max. operating pressure |
1.0 MPa |
| Proof pressure |
1.5 MPa |
| Fluid temp. min |
-10 ℃ |
| Fluid temp. max |
60 ℃ |
| Ambient temp. min |
-10 ℃ |
| Ambient temp. max |
60 ℃ |
| Lubrication |
Non-lube |
| Piston speed min |
50 mm/s |
| Weight |
10,700 g |
Specification values above are for model code MGPS80-50 as published by SMC. A change of one character in the suffix gives a different part, so order by the full code.

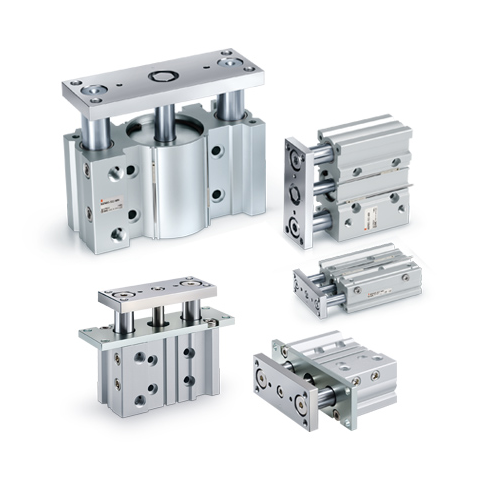

About the SMC MGPS series
- Weight reduced by up to 24% by shortening the guide rod and changing the plate thickness
- Realized space savingReduced space required for cylinder installation by shortening the guide rod by up to 22mm
- Circular auto switch and magnetic field resistant auto switch do not occupy space and can be installed directly attachable
Supply from Korea
Genuine SMC, sourced through Korean distribution and shipped from Korea by FedEx International Priority with export packing and commercial documents. Need a different stroke, switch or suffix? Send the full model code and quantity and we will quote it.
